描述

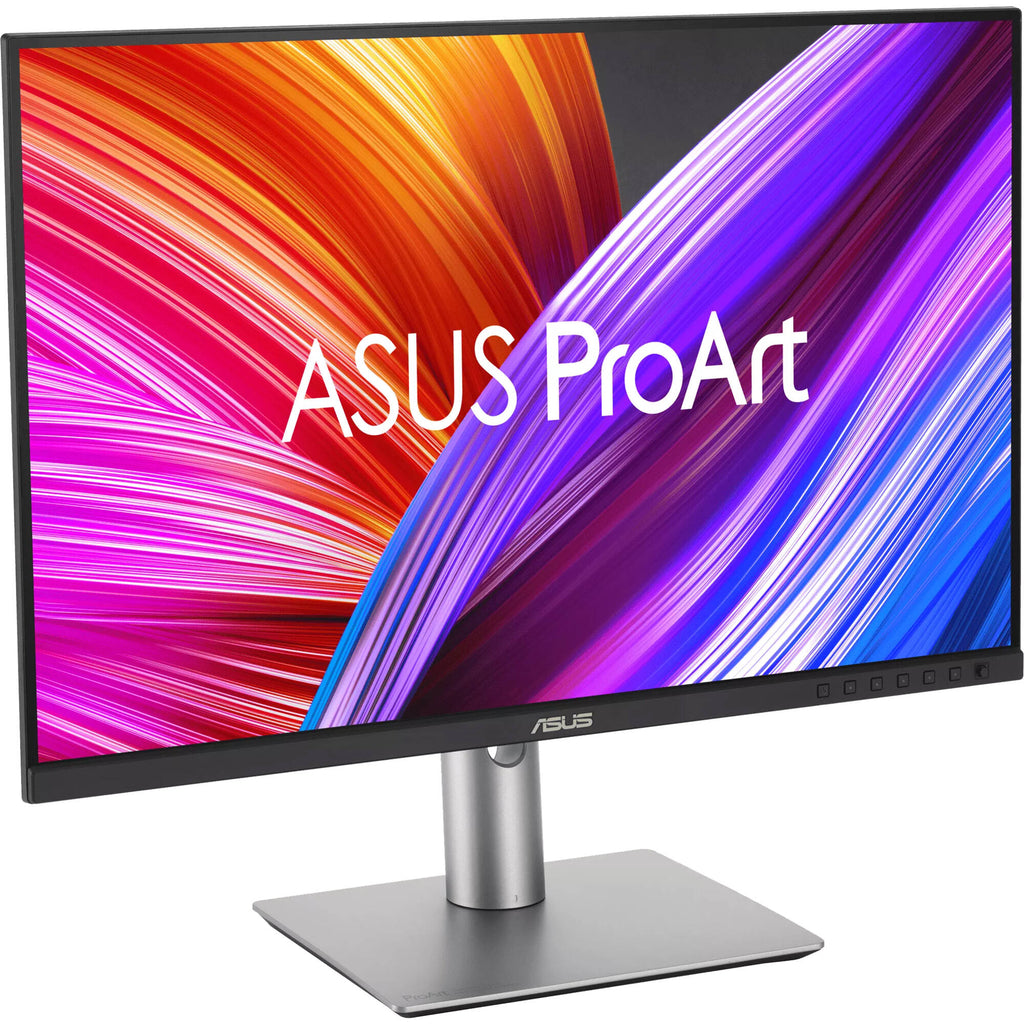

ASUS ProArt Display PA248CRV 專業顯示器 – 24.1 吋、IPS、16:10、WUXGA (1920 x 1200)、97% DCI-P3、色彩準確度 ΔE < 2、Calman 認證、HDR-10、USB-C PD 96W、VESA MediaSync、人體工學支架、環保永續
- 24.1 吋 16:10 WUXGA (1920 x 1200) LED 背光 HDR 顯示器，搭載 178°廣視角 IPS 面板
- 具備 97% DCI-P3 和 100% sRGB 廣色域涵蓋範圍
- 取得 Calman 認證及原廠校準色彩準確度為 Delta E < 2

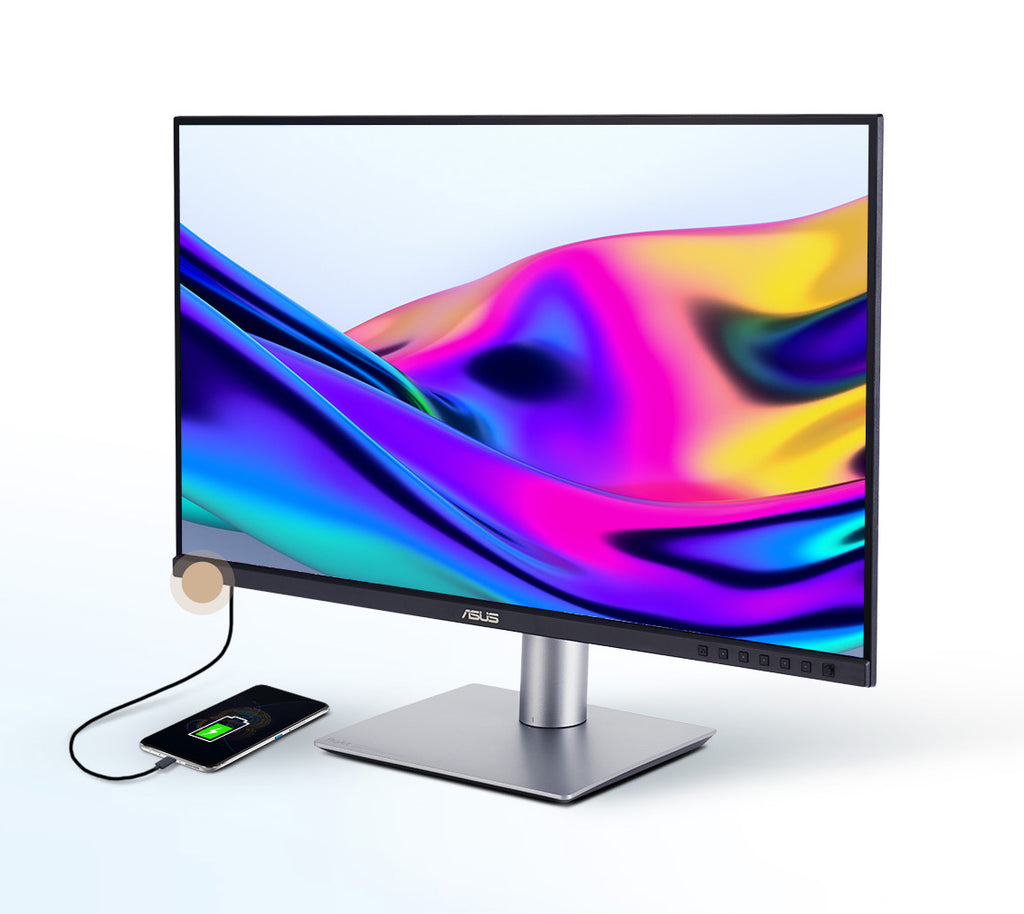

- 廣泛的連線能力包括 DisplayPort™ over USB-C® 含 96 瓦電源供應、DisplayPort™、HDMI® 及 USB 集線器
- 纖薄外型和小型底座，外加壁掛設計，可大幅節省桌面空間
- 人體工學設計，可俯仰、左右轉動、樞軸旋轉及高度調整，以提供舒適的觀看姿勢
- 採用紙質包裝並具備符合環境標準的能源效率表現，實現環保永續目標
--------------------------------------------------------------
Display
Panel Size (inch) : 24.1
Pixels Per Inch (PPI) : 94
Aspect Ratio : 16:10
Display Viewing Area (H x V) : 518.4 x 324.0 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.270mm
Resolution : 1920x1200
Color Space (sRGB) : 100%
Color Space (DCI-P3) : 97%
Brightness (Typ.) : 350cd/?
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 75Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Pixels Per Inch (PPI) : 94
Aspect Ratio : 16:10
Display Viewing Area (H x V) : 518.4 x 324.0 mm
Display Surface : Non-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.270mm
Resolution : 1920x1200
Color Space (sRGB) : 100%
Color Space (DCI-P3) : 97%
Brightness (Typ.) : 350cd/?
Contrast Ratio (Typ.) : 1000:1
Display Colors : 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max) : 75Hz
HDR (High Dynamic Range) Support : HDR10
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)
Video Feature
Trace Free Technology : Yes
ProArt Preset : Native
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
SPLENDID Technology : 有
Color Temp. Selection : Yes(5 modes)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
ProArt Chroma Tune : Yes
Low Blue Light : Yes
ProArt Preset : Native
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec. 2020
ProArt Preset : DICOM
ProArt Preset : Rec. 709
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
SPLENDID Technology : 有
Color Temp. Selection : Yes(5 modes)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 )
Color Accuracy : △E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
ProArt Chroma Tune : Yes
Low Blue Light : Yes
Audio Feature
Speaker : Yes(2Wx2)
I/O Ports
USB-C x 1
DisplayPort 1.4 x 2 (Daisy Chain)
USB Hub : 3x USB 3.2 Gen 1 Type-A
USB Hub : 1x USB 3.2 Gen 1 Type-C
Earphone Jack : Yes
USB-C Power Delivery : 96W
DisplayPort 1.4 x 2 (Daisy Chain)
USB Hub : 3x USB 3.2 Gen 1 Type-A
USB Hub : 1x USB 3.2 Gen 1 Type-C
Earphone Jack : Yes
USB-C Power Delivery : 96W
Signal Frequency
Digital Signal Frequency : USB-C, DisplayPort : 95~95 KHz (H) / 48~75 Hz (V)
HDMI : 30~95 KHz (H) / 48~75 Hz (V)
HDMI : 30~95 KHz (H) / 48~75 Hz (V)
Power Consumption
Power Consumption : 12.35 W
Power Saving Mode : <0.5W
Power Off Mode : 0W (hard switch)
Voltage : 100-240V, 50/60Hz
Power Saving Mode : <0.5W
Power Off Mode : 0W (hard switch)
Voltage : 100-240V, 50/60Hz
Mechanical Design
Tilt : Yes (+23° ~ -5°)
Swivel : Yes (+30° ~ -30°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Swivel : Yes (+30° ~ -30°)
Pivot : Yes (+90° ~ -90°)
Height Adjustment : 0~130mm
VESA Wall Mounting : 100x100mm
Kensington Lock : Yes
Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 531.69 x (399.2~529.2) x 190.37 mm
Phys. Dimension without Stand (W x H x D) : 531.69 x 350.18 x 44.1 mm
Box Dimension (W x H x D) : 610 x 414 x 126 mm
Phys. Dimension without Stand (W x H x D) : 531.69 x 350.18 x 44.1 mm
Box Dimension (W x H x D) : 610 x 414 x 126 mm
Weight (Esti.)
Net Weight with Stand : 5.9 Kg
Net Weight without Stand : 4.2 Kg
Gross Weight : 8.5 Kg
Net Weight without Stand : 4.2 Kg
Gross Weight : 8.5 Kg
Accessories (vary by regions)
Color pre-calibration report
DisplayPort cable
HDMI cable
Power cord
Quick release stand
Quick start guide
USB-C cable
Warranty Card
Welcome Card
DisplayPort cable
HDMI cable
Power cord
Quick release stand
Quick start guide
USB-C cable
Warranty Card
Welcome Card
Certificate
Energy Star
EPEAT Gold
TCO Certified
TÜV Flicker-free
TÜV Low Blue Light (Hardware Solution)
VESA MediaSync Display
Calman Verified
EPEAT Gold
TCO Certified
TÜV Flicker-free
TÜV Low Blue Light (Hardware Solution)
VESA MediaSync Display
Calman Verified
