Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
190 x 150 x 86 mm
Efficiency
80Plus Titanium
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
30A 25A 133.3A 0.3A 3A
Combined Load
125W 125W 1600W 3.6W 15W
Total Output
1600W

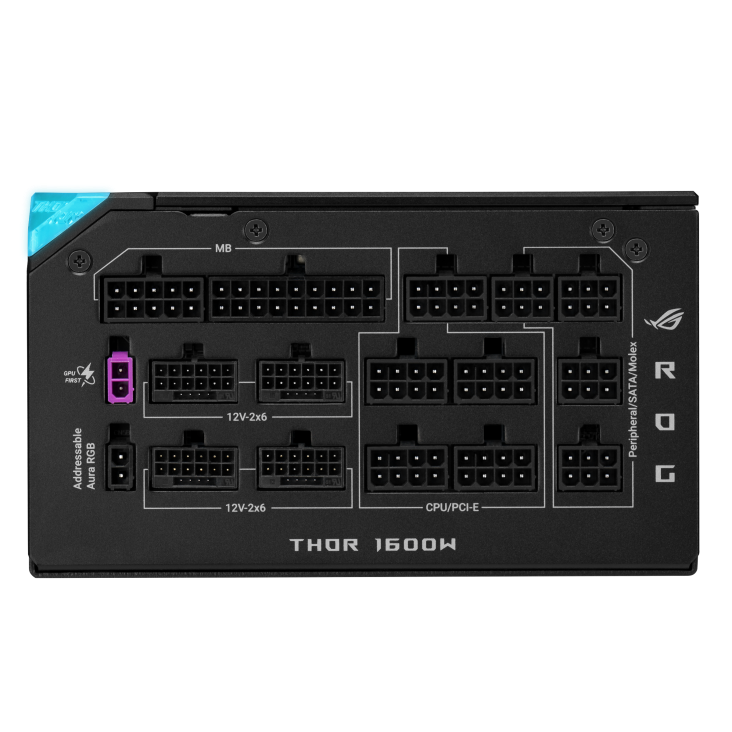

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
CPU 4+4-pin x 3
PCI-E 6+2-pin x 3
PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER)
SATA x 9
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 3 (1000mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm)
ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm)
PCI-E Cable 1-to-1 x 3 (750mm)
SATA Cable 1-to-3 x 3 (400+120+120mm)
Peripheral 1-to-3 x 1 (400+150+150mm)
Addressable RGB Cable x 1 (800mm)
ROG OLED stand x 1
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1
Weight
2.5 kg (single PSU)
AURA SYNC
ARGB
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
