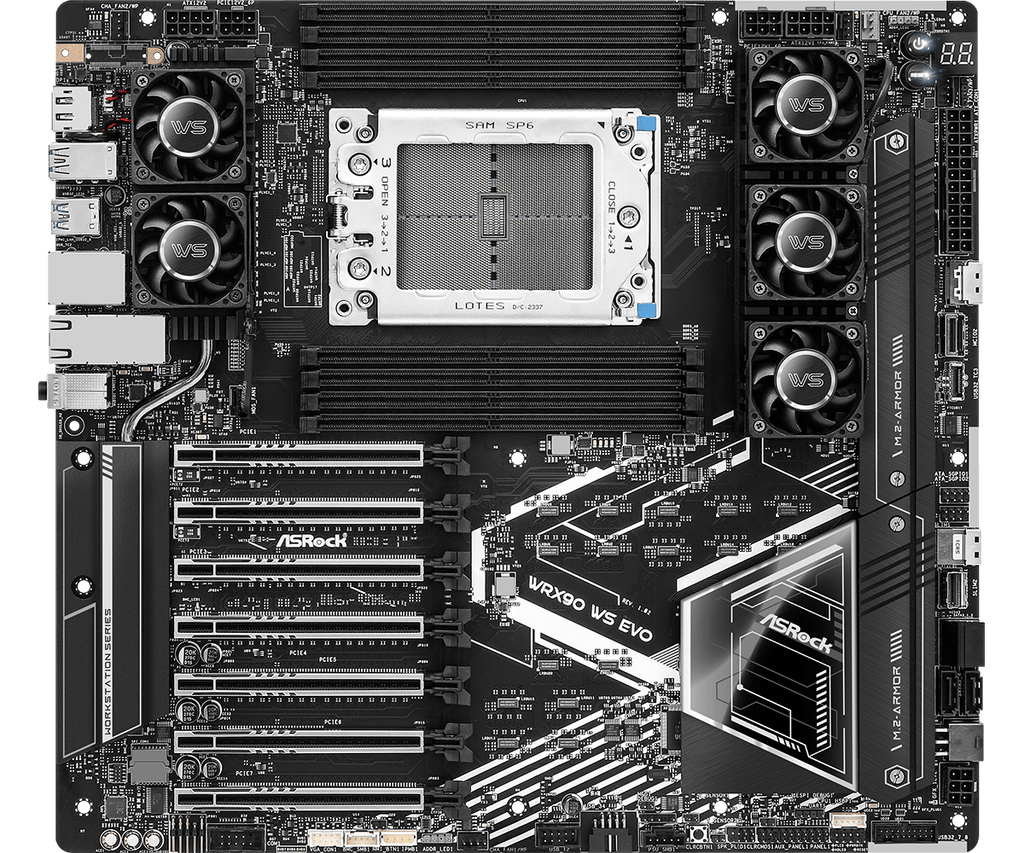

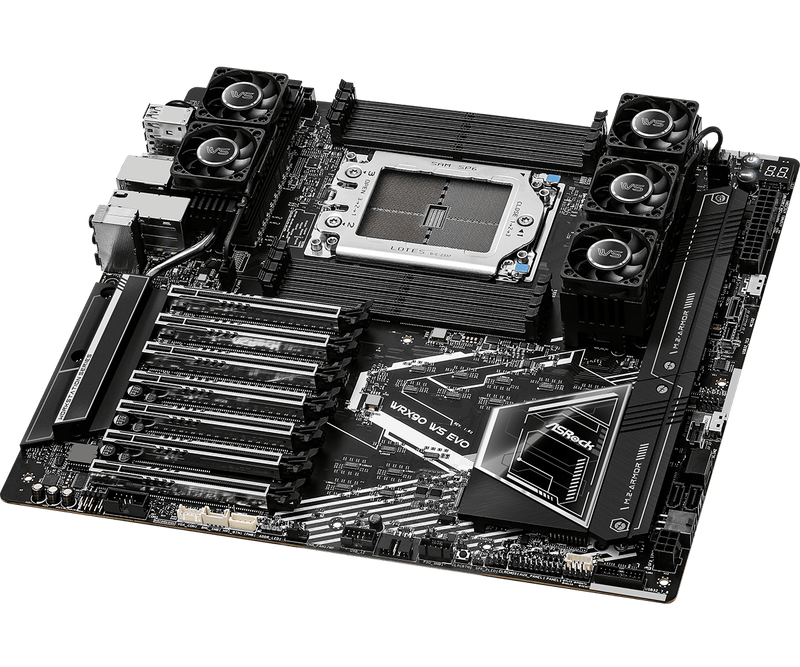

[最新產品] ASRock WRX90 WS EVO AMD Ryzen Threadripper PRO 7000 WX-Series Socket sTR5 Motherboard


價格:
特價$10,499.00

描述

  • Unique Feature
    Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Eight Channel DDR5
    - USB4 Type-C Ports (40 Gb/s)
    Rock-Solid Durability
    - Ultra Low-Loss PCB
    - 18+3+3 Power Phase, 110A SPS for VCore
    - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
    Ultrafast Connectivity
    - Dual Intel® 10G LAN
    EZ Update
    - ASRock Auto Driver Installer
  • CPU
    - Supports AMD Ryzen™ Threadripper™ PRO Processors
    - Supports AMD Socket sTR5
    - Supports ASRock Hyper BCLK Engine
  • Chipset
    - AMD WRX90
  • Memory
    - Eight Channel DDR5 Memory Technology
    - 8 x DDR5 DIMM Slots*
    - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
    - Max. capacity of system memory: 2TB

    *S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - Aspeed AST2600 BMC Controller
    - 1 x DisplayPort 1.1a with max. resolution up to 1920x1200 @ 60Hz*

    *DisplayPort 1.1a does not support audio function.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Nahimic Audio
  • LAN
    2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2)
    - Support PXE 1 x Dedicated IPMI (Realtek RTL8211F)
  • Slots
    CPU:
    - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*

    - 15μ Gold Contact in VGA PCIe Slots

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
    - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
    - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    CPU:
    - 2 x USB4 Type-C (Rear)
    - 4 x USB 3.2 Gen2 Type-A (Rear)
    Chipset:
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
    - 4 x USB 2.0 (Front)

    *All USB ports support ESD Protection
  • Connector
    - 2 x Thermistor Cable Headers
    - 1 x Front VGA Header
    - 1 x COM Port Header
    - 1 x Power LED and Speaker Header
    - 1 x Intelligent Platform Management Bus Header
    - 1 x PSU SMBus Header
    - 1 x BMC SMBus Header
    - 1 x Auxiliary Panel Header
    - 2 x Addressable LED Headers*
    - 1 x CPU Fan Connector (4-pin)**
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 3 pin ATX Power Connector*****
    - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
    - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
    - 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*******
    - 1 x Right Angle Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    - 2 x SGPIO Headers
    - 1 x CPU HP-SMBus Connector
    - 1 x Non Maskable Interrupt Button Header
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED
    - 1 x Clear CMOS Button

    *Support in total up to 5V/3A, 15W LED Strip

    **CPU_FAN1 supports the fan power up to 1A (12W).

    ***CPU_FAN2/WP supports the fan power up to 2A (24W).

    ****CHA_FAN1~3/WP support the fan power up to 2A (24W).

    *****Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU.

    ******It is required to connect both ATX12V1 and ATX12V2; otherwise, the system may not boot up properly.
    It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking.

    *******It is required to connect 6 pin PCIE 12V Power Cables to either GFX_12V1 or GFX_12V2; otherwise, the system may not boot up properly.
  • Rear Panel I/O
    - 1 x DisplayPort 1.1a
    - 1 x Optical SPDIF Out Port
    - 2 x USB4 Type-C Ports (40 Gb/s)*
    - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 2 x USB 3.2 Gen1 Type-A Ports
    - 2 x RJ-45 LAN Ports
    - 1 x RJ45 Dedicated IPMI LAN Port
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)

    *USB_TC1 supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging; USB_TC2 supports USB PD 3.0 up to 5V@3A (15W) charging.
  • Software and UEFI
    Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 4 x SATA Data Cables
    - 2 x Thermistor Cables
    - 1 x Multi PSU Adaptor Cable
    - 2 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Form Factor
    - EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
    - 14 Layer PCB
    - 2oz Copper PCB
  • OS
    - Microsoft Windows® 11 64-bit
