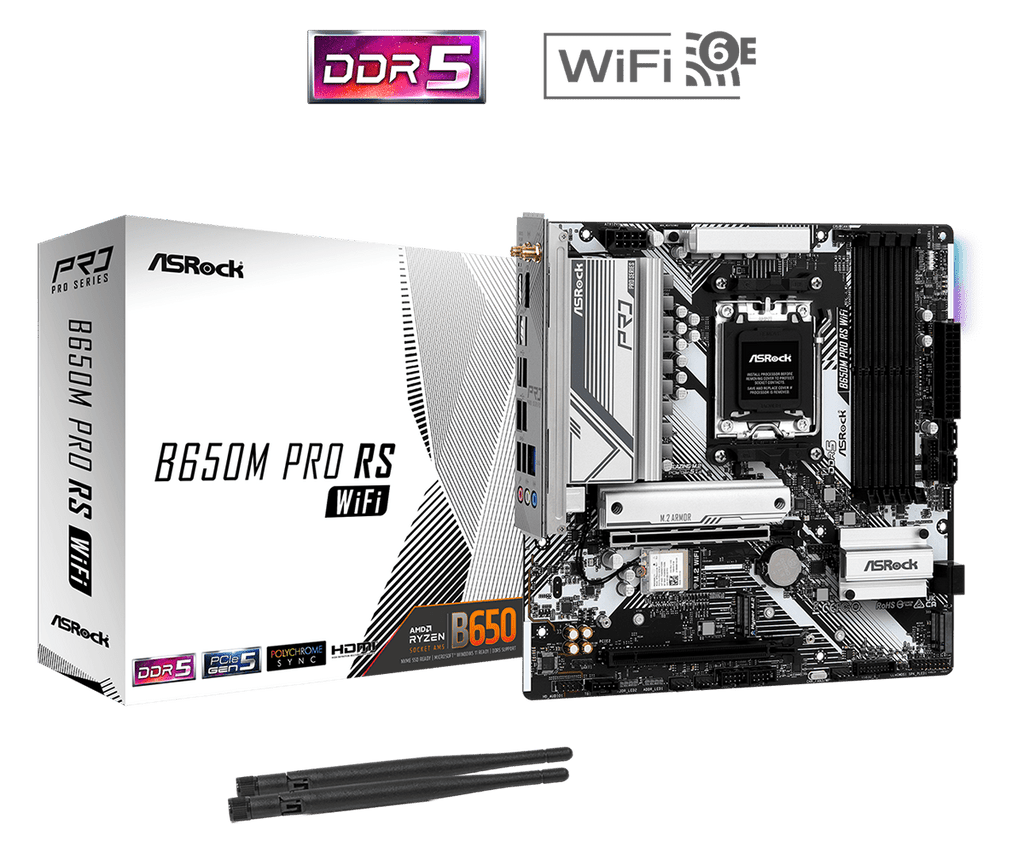

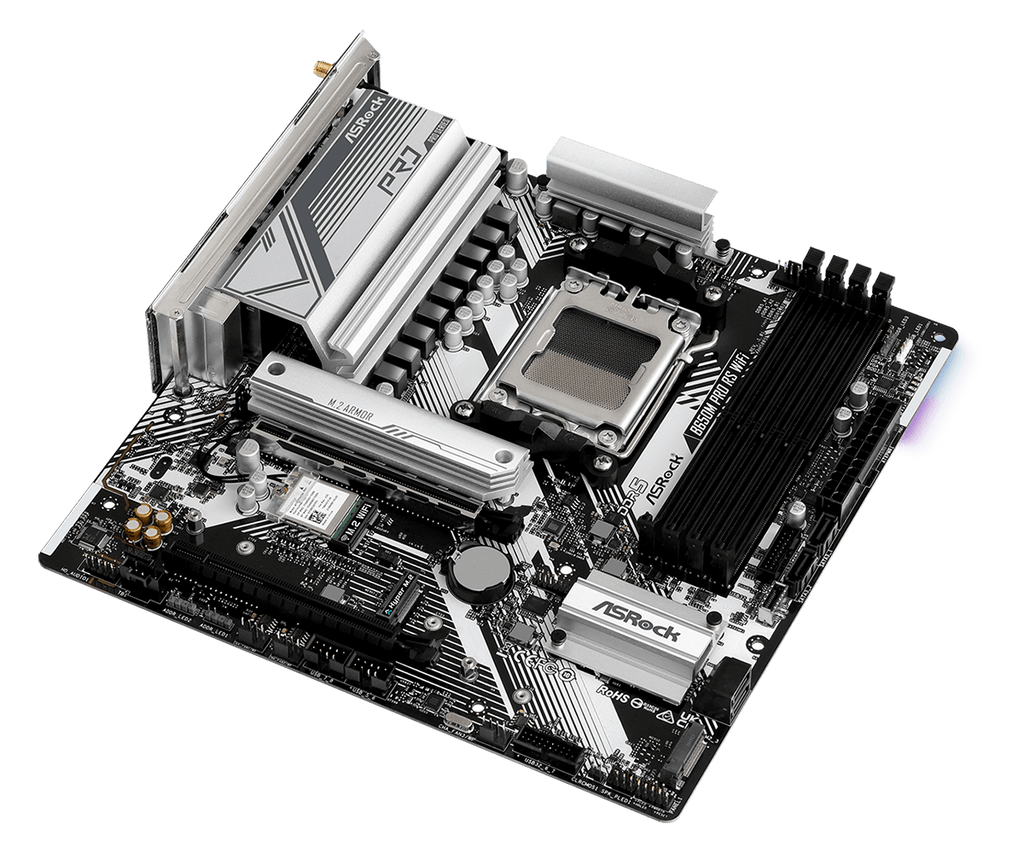

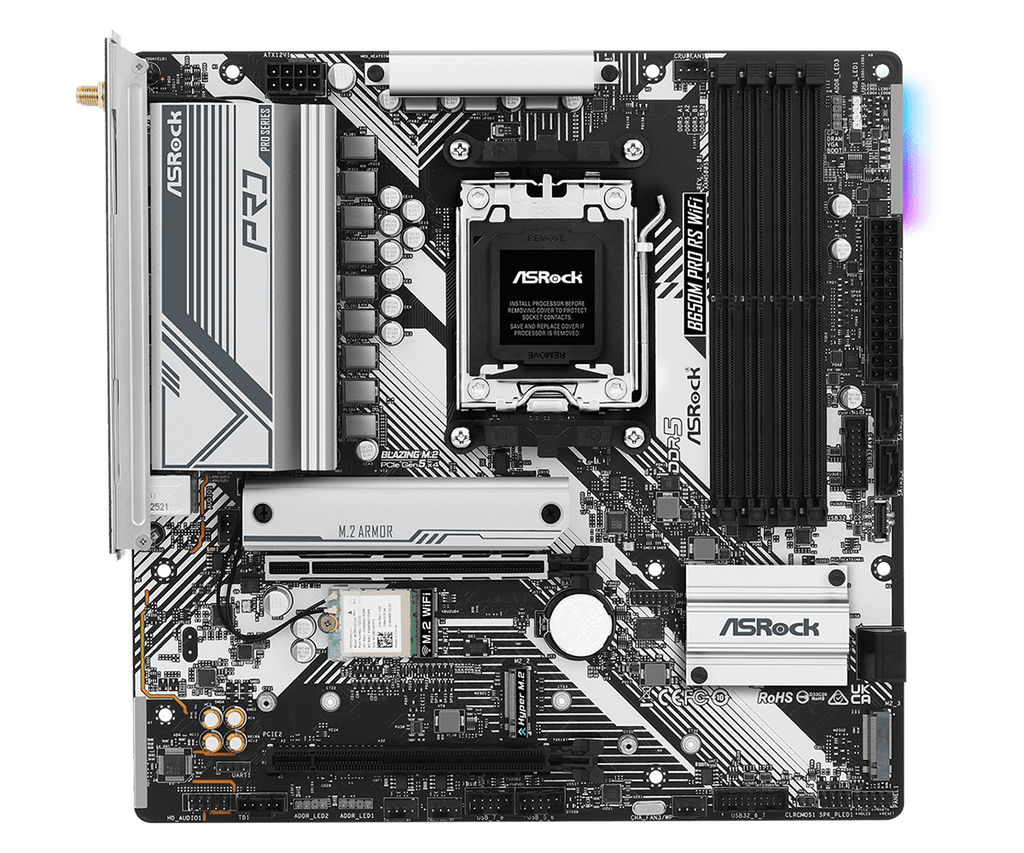

ASRock B650M Pro RS WiFi DDR5,Socket AM5 mATX Motherboard

• Exclusive Features
  Excellent Productivity
  - PCIe Gen5 (M.2)
  - Dual-channel DDR5
  Rock-solid durability
  - 8+2+1 power phase, 50A Dr.MOS
  - Pre-installed I/O expansion card
  Ultra-fast connectivity
  - 2.5 Gigabit LAN, 802.11ax Wi-Fi 6E module
  EZ Update
  - BIOS Flashback button
  - ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Power-on status check
• processor
  - Supports AMD AM5 socket Ryzen™ 9000, 8000 and 7000 series processors *



  * Expansion slot availability may vary by CPU. Please refer to PCIe/M.2 Bandwidth List .
• chip
  -AMD B650
• Memory
  - Dual-channel DDR5 memory technology
  - 4 x DDR5 slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) *
  - Maximum system memory capacity: 256GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules



  * Please refer to the memory support list for details.
• BIOS
  - 256Mb AMI UEFI Legal BIOS, supports graphical interface
• Built-in display
  Integrated AMD RDNA™ graphics core (actual support depends on CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3, maximum resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DCS (compression technology), supports HDCP 2.3, maximum resolution up to 4K 120Hz
• Sound
  - 7.1 channel high definition audio (Realtek ALC897 audio codec)
  - Nahimic Audio
• network
  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5 Gigabit LAN Software
  - Fully intelligent automatic bandwidth optimization
  - Visual friendly UI interface
  - Visual network usage statistics
  - Built-in bandwidth optimization for gaming, browsing and streaming modes
  - User-defined priority control

Wireless network- 802.11ax Wi-Fi 6E module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports dual-band 2x2 and extended 6GHz band *
- Dual antenna supports 2 (transmit) x 2 (receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

* The Wi-Fi 6E module only supports Microsoft ^® Windows ^® 11 operating system. There is no driver for Windows ^{® 10. The availability of the 6GHz band will depend on the different regulatory status of each country and region. This feature will be enabled through Windows ®} Update and software update (in supported countries).
6E function requires a 6GHz compatible routerExpansion SlotCPU:
- 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
- 1 x PCIe 3.0 x16 slot (PCIE2), supports x4 mode *
Chipset:
- 1 x M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module *
- Supports AMD CrossFire™
- Graphics card PCIe slot is 15μ gold-plated pin (PCIE1)

* Support NVMe SSD bootstoreCPU:
- 1 x Blazing M.2 slot (M2_1, Key M), supports PCIe Gen5x4 (128 Gb/s) mode for 2260/2280 *
Chipset:
- 1 x Hyper M.2 slot (M2_2, Key M), supports PCIe Gen4x4 (64 Gb/s) mode for 2260/2280 *
- 1 x M.2 slot (M2_3, Key M), supports PCIe Gen4x2 (32 Gb/s) mode for 2260/2280 *
- 4 x SATA3 6.0 Gb/s ports

* Support NVMe SSD bootRAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *

* Requires additional M.2 NVMe expansion cards to support RAID 10USB- 1 x USB 3.2 Gen2 Type-C (rear)
- 1 x USB 3.2 Gen2 Type-A (rear)
- 1 x USB 3.2 Gen1 Type-C (front)
- 6 x USB 3.2 Gen1 Type-A (4 front, 2 rear)
- 8 x USB 2.0 (4 front, 4 rear)

* All USB supports ESD protectionConnectors- 1 x SPI TPM header-
1 x Power LED and speaker header-
1 x RGB LED header *
- 3 x Addressable LED headers **
- 1 x CPU fan connector (4-pin) ***
- 1 x CPU / Water Pump fan connector (4-pin) (Smart Fan Speed Control) ****
- 3 x Chassis / Water Pump fan connector (4-pin) (Smart Fan Speed Control) *****
- 1 x 24-pin ATX power connector-
1 x 8-pin 12V power connector (High-density power connector)
- 1 x Front panel audio connector-
1 x Thunderbolt™ AIC port (5-pin) (Supports ASRock Thunderbolt™ 4 AIC card)
- 2 x USB 2.0 headers (Supports 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (Supports 4 USB 3.2 Gen1 ports)
- 1 x Front Type C USB 3.2 Gen1 header

* Supports up to 12V/3A, 36W LED strip.

** Supports up to 5V/3A, 15W LED strip

*** CPU_FAN1 supports fan power up to 1A (12W).

**** CPU_FAN2/WP supports fan power up to 2A (24W).

***** CHA_FAN1~3/WP supports fan power up to 2A (24W).

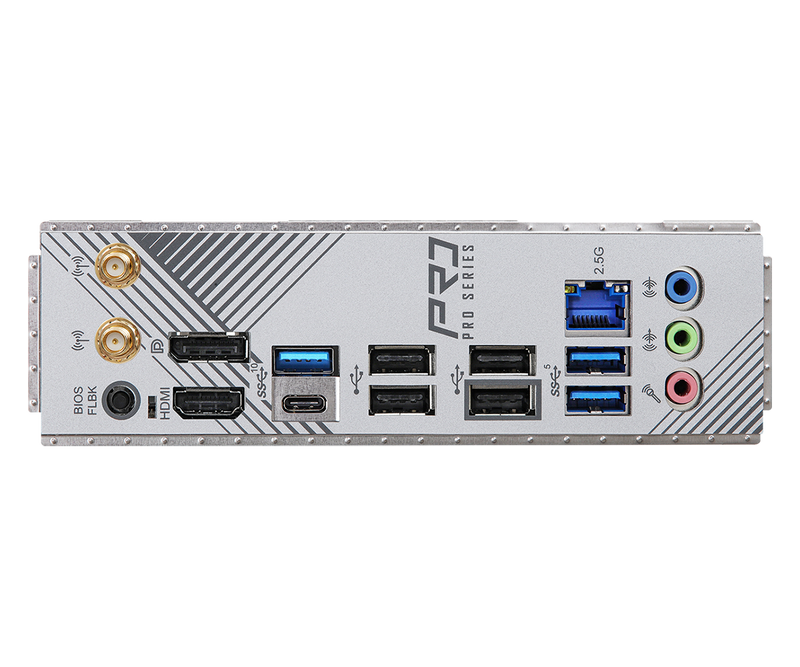

CPU_FAN2/WP and CHA_FAN1~3/WP can automatically detect 3-pin or 4-pin fans.Back panel input/output interface- 2 x Antenna Ports-
1 x HDMI Port-
1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports-
4 x USB 2.0 Ports-
1 x RJ-45 LAN Port-
1 x BIOS Flashback Button-
HD Audio Jack: Line-in/ Front Speaker/ MicrophoneSoftware and UEFISoftware - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5 Gigabit LAN Software - ASRock Polychrome SYNC * UEFI
- ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash







* These apps can be downloaded from ASRock APP Shop.appendix- 1 x User Manual-
2 x SATA data cables-
2 x ASRock WiFi 2.4/5/6 GHz antennas-
3 x M.2 slot screws-
1 x M.2 insert standoffSpecification- Micro ATX form factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- 2 oz copper circuit boardoperating system- Support Microsoft ^® Windows 10 64-bit / 11 64-bit
