ASROCK
價格:
$1,085.00

描述

    • Exclusive features
      Superb Productivity
      - PCIe Gen5 (M.2)
      - Dual Channel DDR5
      Rock-Solid Durability
      - 12+2+1 Phase Power Supply, 50A Dr.MOS with Enlarged Heatsink Armor
      - Flexible Integrated I/O Shield
      Ultrafast Gaming
      - 2.5 Gigabit LAN
      - ASRock Lightning Game Port
      EZ Update
      - BIOS Flashback Button
      - ASRock Auto Driver Installer
      EZ Troubleshooter
      - ASRock Boot Status Check
    • processor
      - Supports AMD Socket AM5 Ryzen™ 7000 Series processors
    • chip
      -AMD B650
    • Memory
      - Dual channel DDR5 memory technology
      - 4 x DDR5 slots
      - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
      - Maximum system memory capacity: 192GB
      - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory module
    • BIOS
      - 256Mb AMI UEFI Legal BIOS, supports graphical interface
    • built-in display
      Integrated AMD RDNA™ 2 graphics (actual support depends on CPU)
      - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supported HDCP 2.3 and max. resolution up to 4K 120Hz
    • Sound effects
      - 7.1 channel high-fidelity audio (Realtek ALC897 audio codec)
      - Nahimic Audio
    • network
      - 2.5 Gigabit network card 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Phantom Gaming LAN software
      - Fully intelligent automatic bandwidth optimization
      - Visual friendly UI interface
      - Visual network usage statistics table
      - Built-in Bandwidth Optimization for Gaming, Browsing and Streaming Modes
      - User-Defined Priority Control
  • Expansion slot
    CPU:
    - 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
    - 1 x PCIe 4.0 x16 slot (PCIE4), supports x4 mode *
    Chipset:
    - 2 x PCIe 3.0 x1 slots (PCIE2 and PCIE3)

    - Supports AMD CrossFire™
    - The graphics card PCIe slot has 15μ gold-plated headers (PCIE1)

    * Supports NVMe SSD boot
  • store
    CPU:
    - 1 x Blazing M.2 slot (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset
    :
    - 1 x Hyper M.2 slot (M2_2, Key M) , supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
    - 4 x SATA3 6.0 Gb/s ports

    * Supports NVMe SSD and
    supports ASRock U.2 kit when booting
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (rear)
    - 1 x USB 3.2 Gen2 Type-A (rear)
    - 1 x USB 3.2 Gen1 Type-C (front)
    - 6 x USB 3.2 Gen1 (4 front, 2 rear)
    - 8 x USB 2.0 (4 front, 4 rear)

    * All USB supports ESD electrostatic protection
  • Connector
    - 1 x SPI TPM header
    - 1 x Power LED and speaker header
    - 1 x RGB LED header *
    - 3 x Programmable LED header **
    - 1 x CPU fan connector (4-pin) ***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) ****
    - 3 x Case/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) *****
    - 1 x 24-pin ATX power port
    - 1 x 8-pin 12V power port
    - 1 x 4-pin 12V power port
    - 1 x Front Panel Audio port
    - 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card)
    - 2 x USB 2.0 pin connectors (supports 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 headers (supports 4 USB 3.2 Gen1 ports)
    - 1 x front Type C USB 3.2 Gen1 header

    * Supports up to 12V/3A, 36W LED light strips

    ** Supports up to 5V/3A, 15W LED light strips

    *** CPU_FAN1 supports fan power up to 1A (12W).

    **** CPU_FAN2/WP supports fan power up to 2A (24W) ).

    ***** CHA_FAN1~3/WP supports fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can automatically detect 3-pin or 4-pin fans.

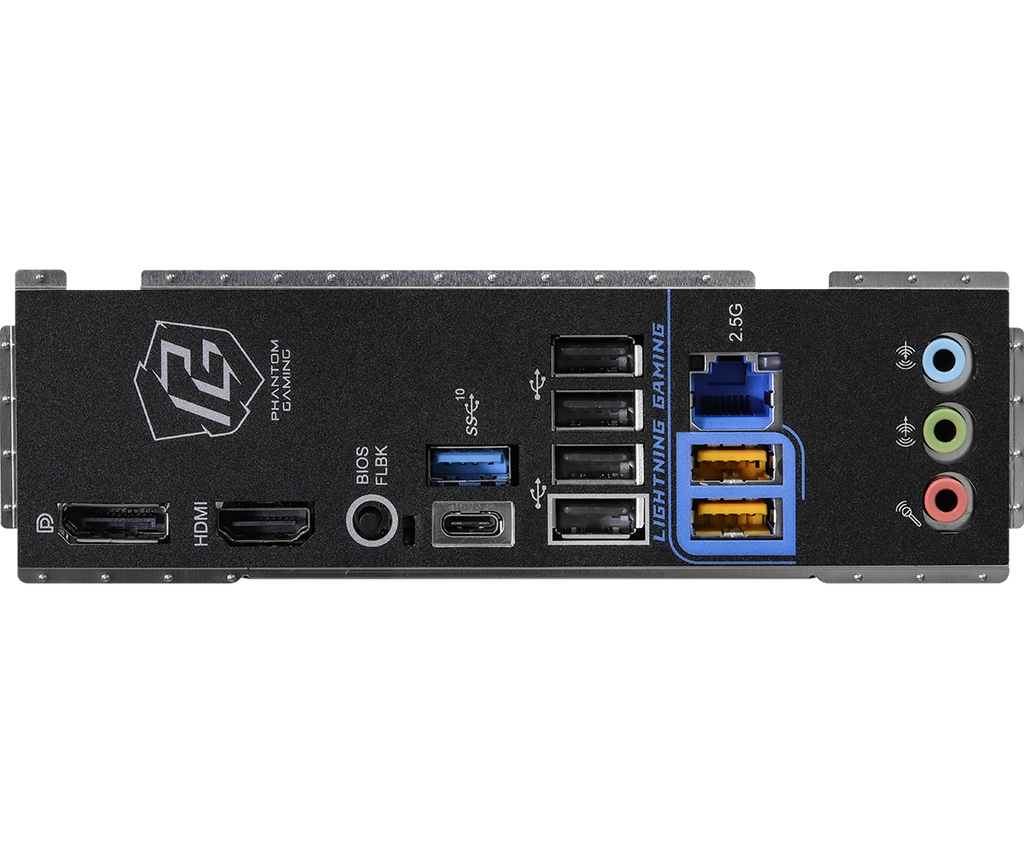

  • Rear panel output/input interface
    - 1 x HDMI port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (ReDriver)
    - 2 x USB 3.2 Gen1 ports (USB32_23 are Lightning gaming ports.)
    - 4 x USB 2.0 ports
    - 1 x RJ-45 LAN port
    - 1 x BIOS Flashback button
    - HD audio jacks: Line-in/Front speakers/Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC *
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    * These apps can be downloaded from ASRock APP Shop.
  • appendix
    - 1 x user manual
    - 2 x SATA data cable
    - 2 x M.2 slot screws
    - 1 x M.2 plug-in holder
  • Specification
    - Micro ATX dimensions: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - 2-ounce copper circuit board
  • operating system
    - Support Microsoft ® Windows 10 64-bit / 11 64-bit
  • Certification
    - FCC, CE
    - Supports ErP/EuP (requires a power supply that supports ErP/EuP)
    •
