Specifications
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually in Stock |
|
Run time for load
WMin-max: 80-800 W
|
7min 47s |
|---|---|
|
|
|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |

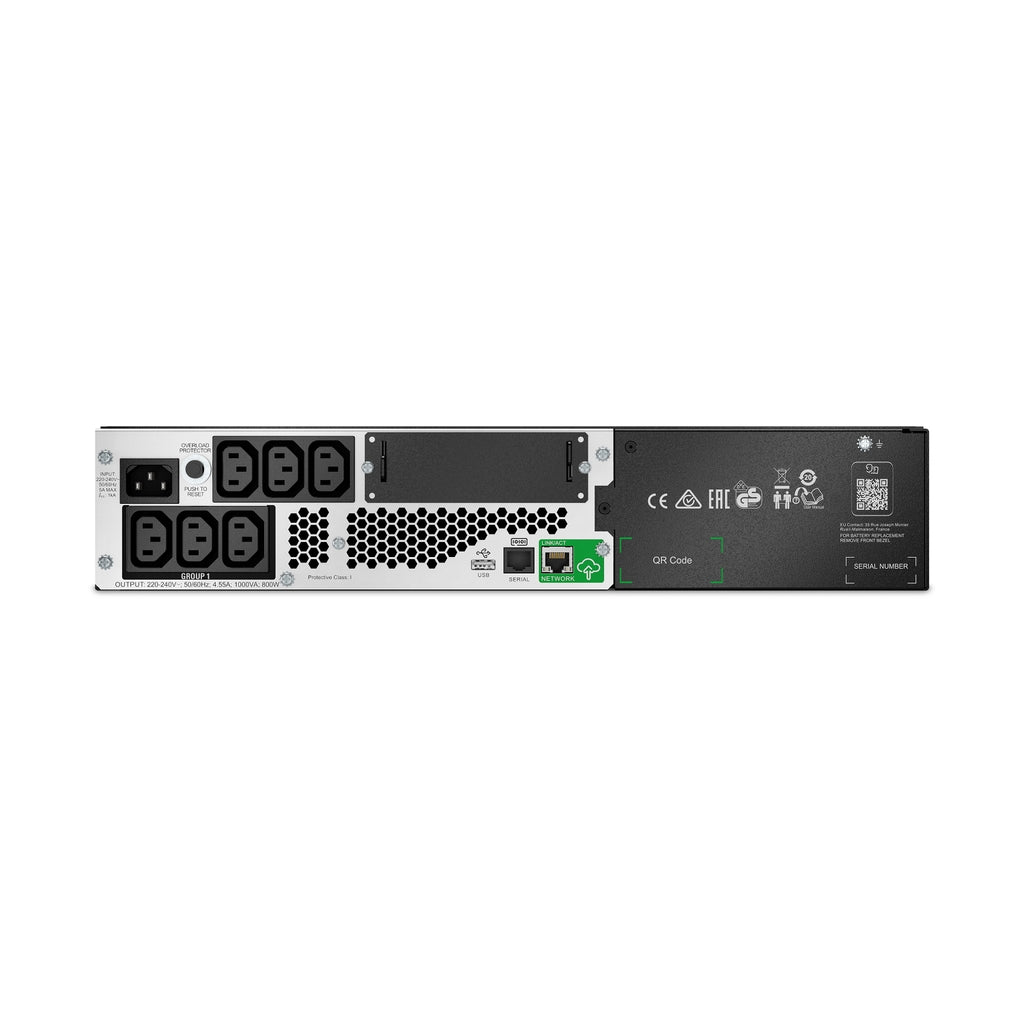

| Input Connection Type | IEC 60320 C14 |
| output connection type | 6 IEC 60320 C13 |
| Number of rack unit | 2U |
| Battery type | Li-Ion (Lithium-Ion) |
| Provided equipment | Installation guide Rack mounting support rails USB cable |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
|---|
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Battery graph comments | This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several v |
| Extended runtime | 0 |
| Battery recharge time | 3 h |
| Battery design life | 8…10 year(s) |
| Battery charger power | 79 W rated |
| product web sub-family | Cloud-enabled monitoring |
|---|---|
| Redundant | No |
| Colour | Black with silver front bezel |
|---|---|
| height | 8.6 cm |
| Width | 43.8 cm |
| Depth | 31.8 cm |
| Net weight | 16.3 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Input protection type | Circuit breaker |
|---|---|
| Input voltage limits | 151...302 V adjustable 160...280 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Crest factor | 3 : 1 |
|---|---|
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| product certifications | C-Tick CE EAC RCM |
|---|---|
| Standards | EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 41 dBA |
|---|---|
| heat dissipation | 70 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…7620.00 m |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % non-condensing |
| Storage Relative Humidity | 0…95 % non-condensing |
| alarm | Audible and visible alarms |
|---|---|

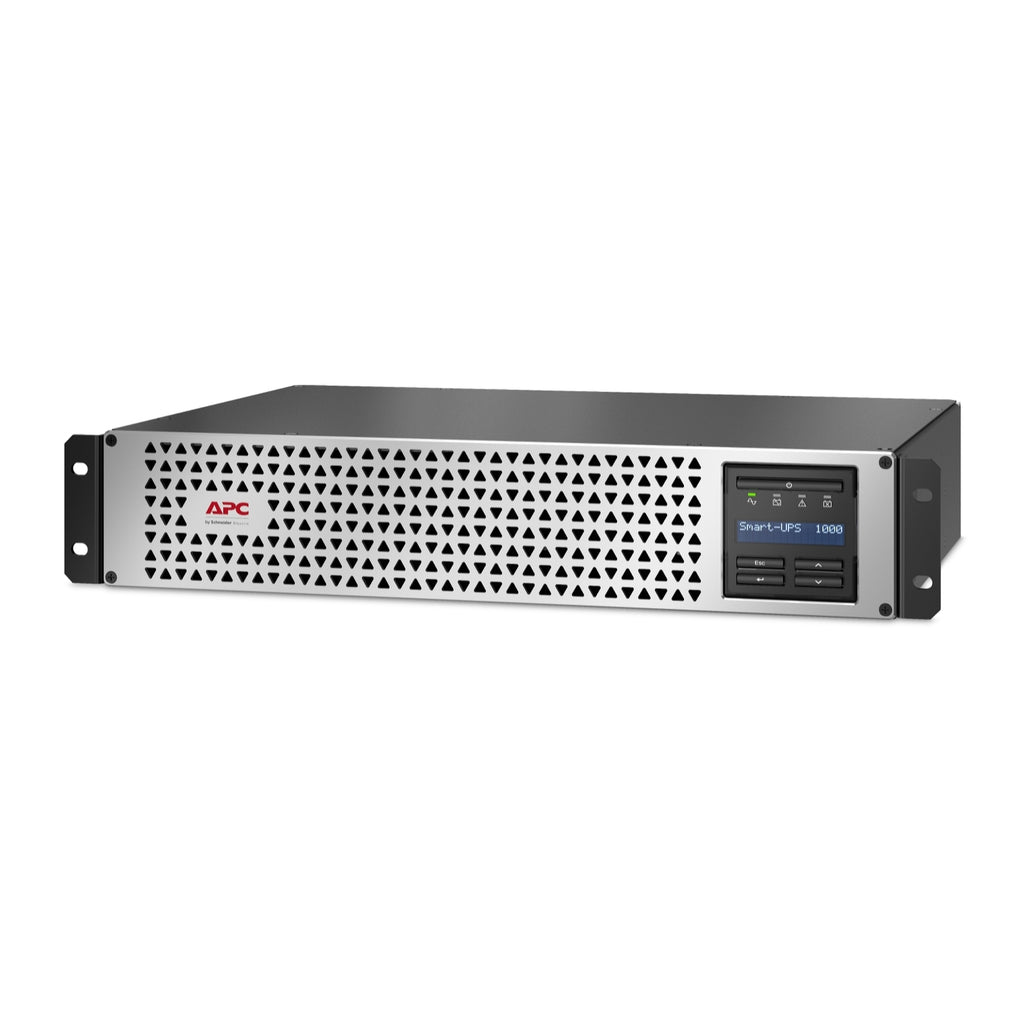

| control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm |
| Surge energy rate | 680 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.9 cm |
| Package 1 Width | 47.2 cm |
| Package 1 Length | 58.4 cm |
| Package 1 Weight | 18.6 kg |
| Warranty | 5 year repair or replace |
|---|
