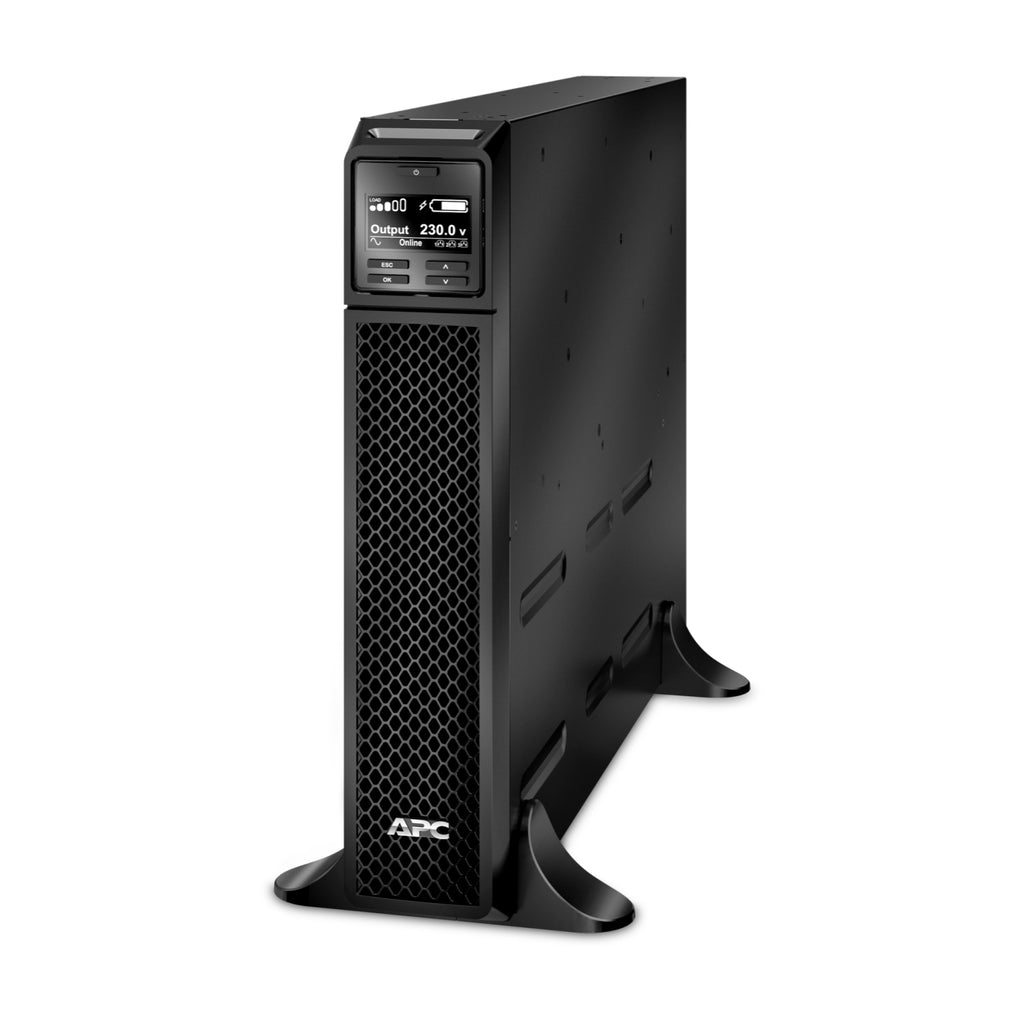

APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)
APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)
APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)
在圖片上滾動放大 點擊圖片以放大
APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)
APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)
APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)

APC Smart-UPS On-Line SRT2200XLI -2200VA 230V, On-Line, 1980Watts/2200 VA, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, built-in internal bypass (Tower)

節省 $6,145.00
APC
價格:
HK$10,690.00 HK$16,835.00

描述

Specifications

Overview
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock
Main
Run time for load
W
information_stroke

Min-max: 198-1980 W
3min 53s
Max. Capacity Used
information_stroke
100 %


Main Input Voltage 230 V
Other Input Voltage 220 V
240 V
Main Output Voltage 230 V
Other Output Voltage 220 V
240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection Type BS1363A British
IEC 60320 C20
Schuko CEE 7 / EU1-16P
output connection type 8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
Cable length 2.44 m
Number of cables 1
Provided equipment CD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Batteries & Runtime
Run Time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Battery type Lead-acid battery
Number of battery filled slots 1
Number of battery free slots 0
Battery recharge time 3 h
Number of battery replacement quantity 1
Battery voltage 72 V
Battery charger power 122 W rated
Battery life 3…5 year(s)
Replacement battery APCRBC141
action_new_window
Extended runtime 1
General
UPS type Double conversion online
product web sub-family High density
Number of power module 1400
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
Colour Black
height 43.2 cm
Width 8.5 cm
Depth 58.4 cm
Net weight 25 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Mounting position Vertical
Input
Network frequency 40...70 Hz auto-sensing
Input voltage limits 100...275 V adjustable (half load)
Output
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Wave type Sine wave
Harmonic distortion Less than 2 %
Crest factor 3 : 1
bypass type Internal bypass (automatic and manual)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Conformance
product certifications CE
EAC
RCM
VDE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
heat dissipation 703 Btu/h
IP degree of protection IP20
Communications & Management
Free slots 1
Alarm Audible and visible alarms : prioritized by severity
Emergency power off Yes
Surge Protection and Filtering
Surge energy rate 340 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24.6 cm
Package 1 Width 81 cm
Package 1 Length 59.9 cm
Package 1 Weight 30.84 kg
Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
