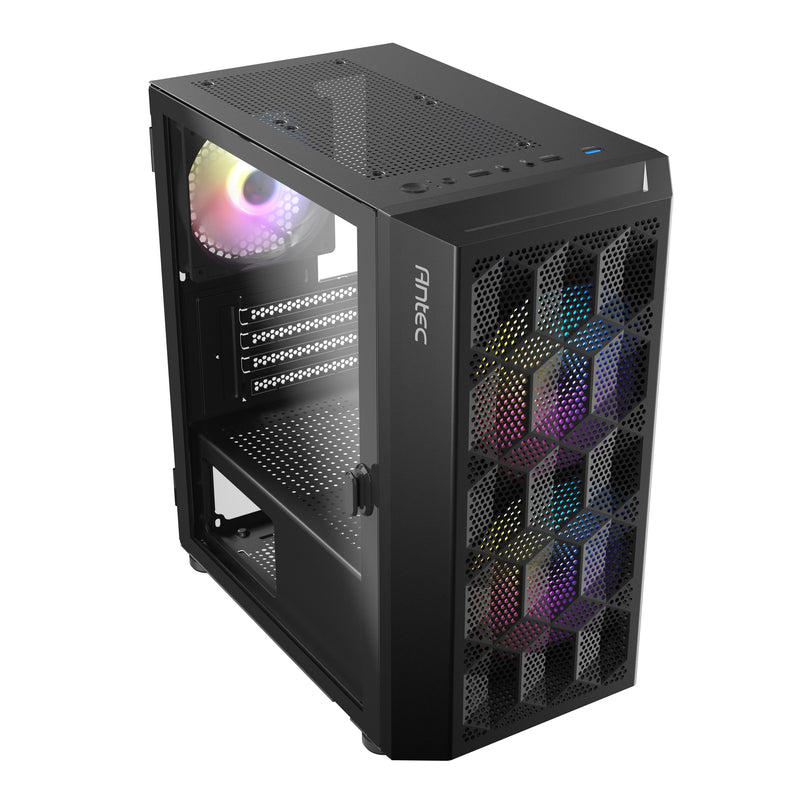

| Case Specification |
| Dimensions |
351 x 200 x 390mm (DxWxH)
364 x 212 x 396 (DxWxH) (With handle) |
| Form Factor |
Mini Tower |
| Materials |
Steel + Plastic |
| Mainboard Support |
M-ATX, ITX |
| Front Access & Controls |
Power, Reset, 1 x USB3.0, 2 x USB2.0 , MIC/HD-AUDIO |
| Side Panel |
Tempered Glass Side Panel |
|
| Expansion & Drive Bays |
| Expansion Slots |
4 |
| 3.5" /2.5" |
2/1 |
| 2.5" |
1 |
|
| Fan Support |
| Front |
2 x 120mm / 2 x 140mm |
| Top |
2 x 120mm |
| Rear |
120mm |
| Included Fan(s) |
2 x 120mm RGB fixed mode fans in front & 1 x 120mm RGB fixed mode fan in rear (NX200M RGB) |
|
| Radiator Support |
| Front |
120 / 140 / 240mm |
| Rear |
120mm |
|
| Clearance |
| Max GPU Length |
≤ 275mm |
| Max CPU Cooler Height |
≤ 150mm |
| Max PSU Length |
≤ 150mm |
|
| Miscellaneous |

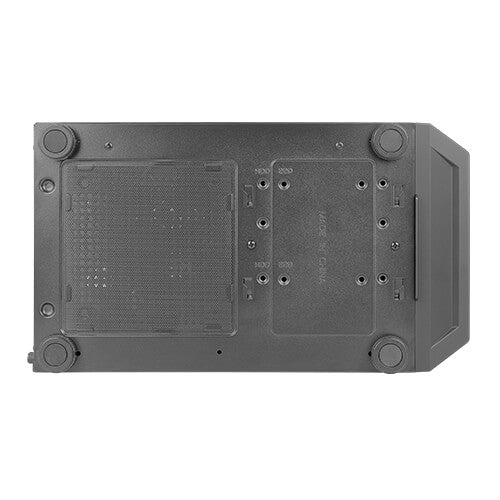

| Dust Filter |
Bottom |
| Net Weight |
3.84 kg (NX200M RGB) |
| Gross Weight |
4.45 kg (NX200M RGB) |
| Warranty |
1 year |
| UPC# |
0-761345-81021-0 (NX200M RGB) |
|
