Fractal Design is a PC gaming hardware manufacturer based in Gothenburg, Sweden.
Since its inception in 2007, Fractal has developed gaming products which fuse Scandinavian design, user-centric innovation and premium quality. Today, Fractal offers gaming hardware to customers around the globe from its offices in Sweden, Taiwan, China and the US.

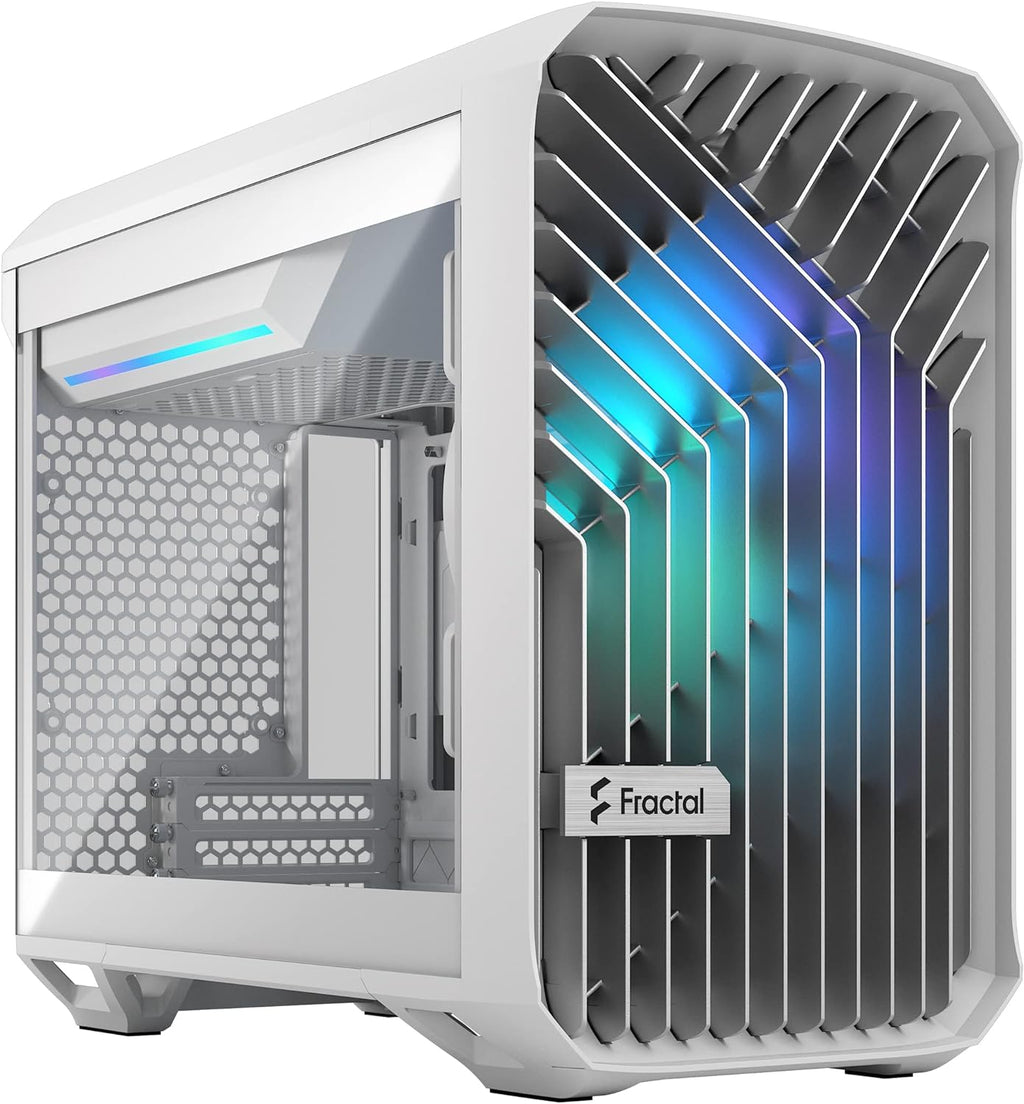

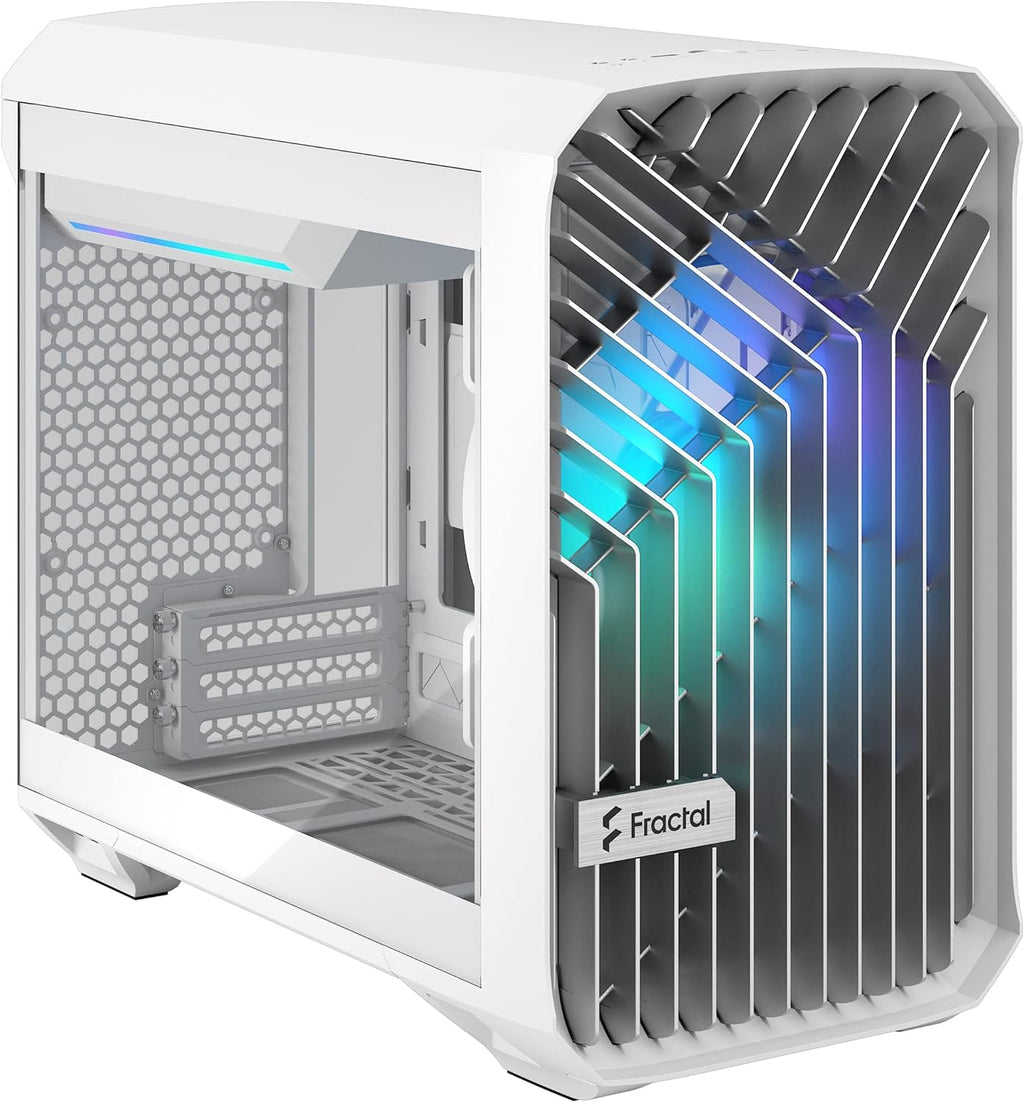

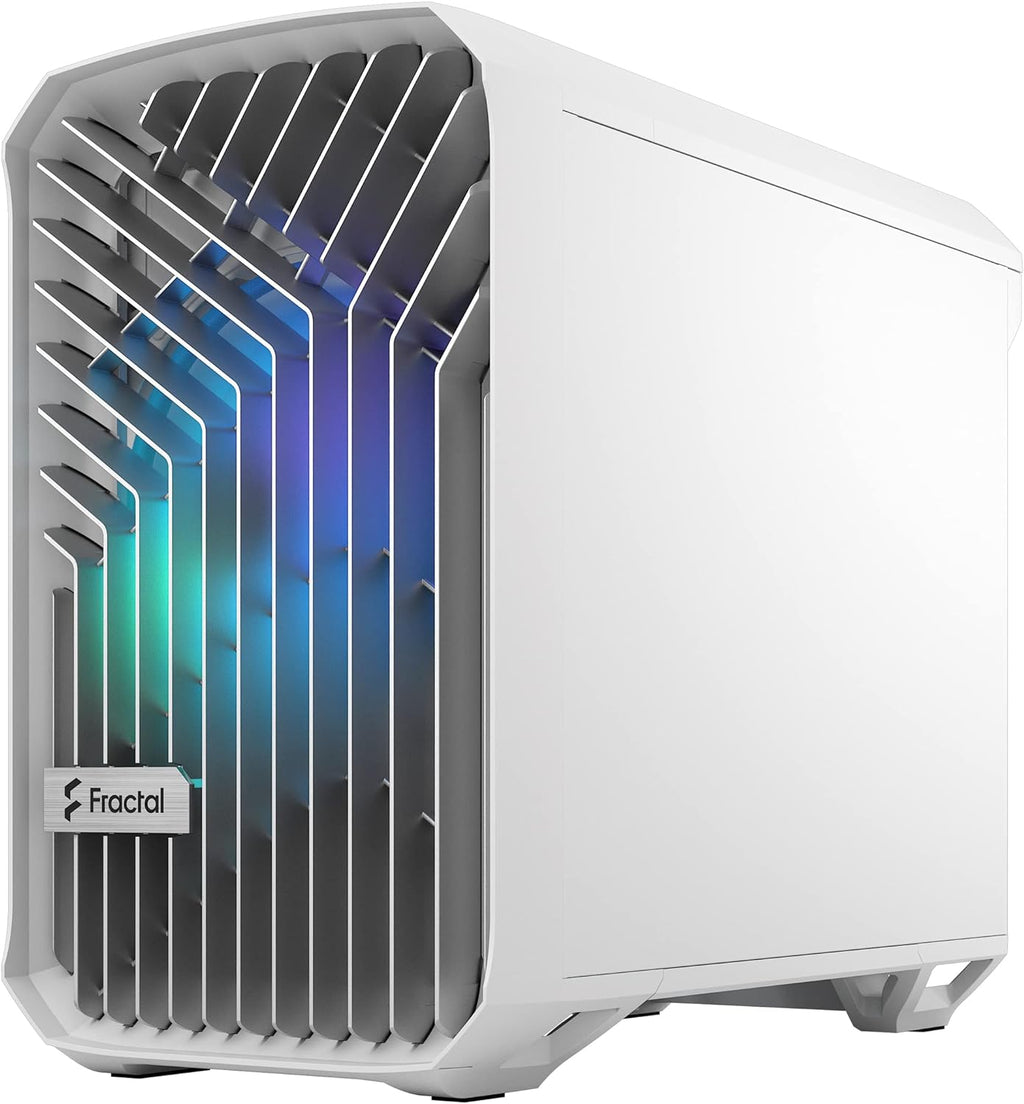

Fractal Design Torrent Nano
The Torrent Nano is built to maximize cooling potential straight out of the box. Main standouts include an unobstructed base intake, an open front grille and one of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version) custom-made to achieve maximum air cooling while maintaining controlled noise levels.
- Open grille and 180 mm front fan optimized for maximum air intake
- Fractal Design 180 x 38 mm fan leverages power, size, and thickness for massive air-moving capacity
- Space optimized, yet still capable of handling up to 3-slot thick 335 mm long GPUs
|
|
|
|
|---|---|---|

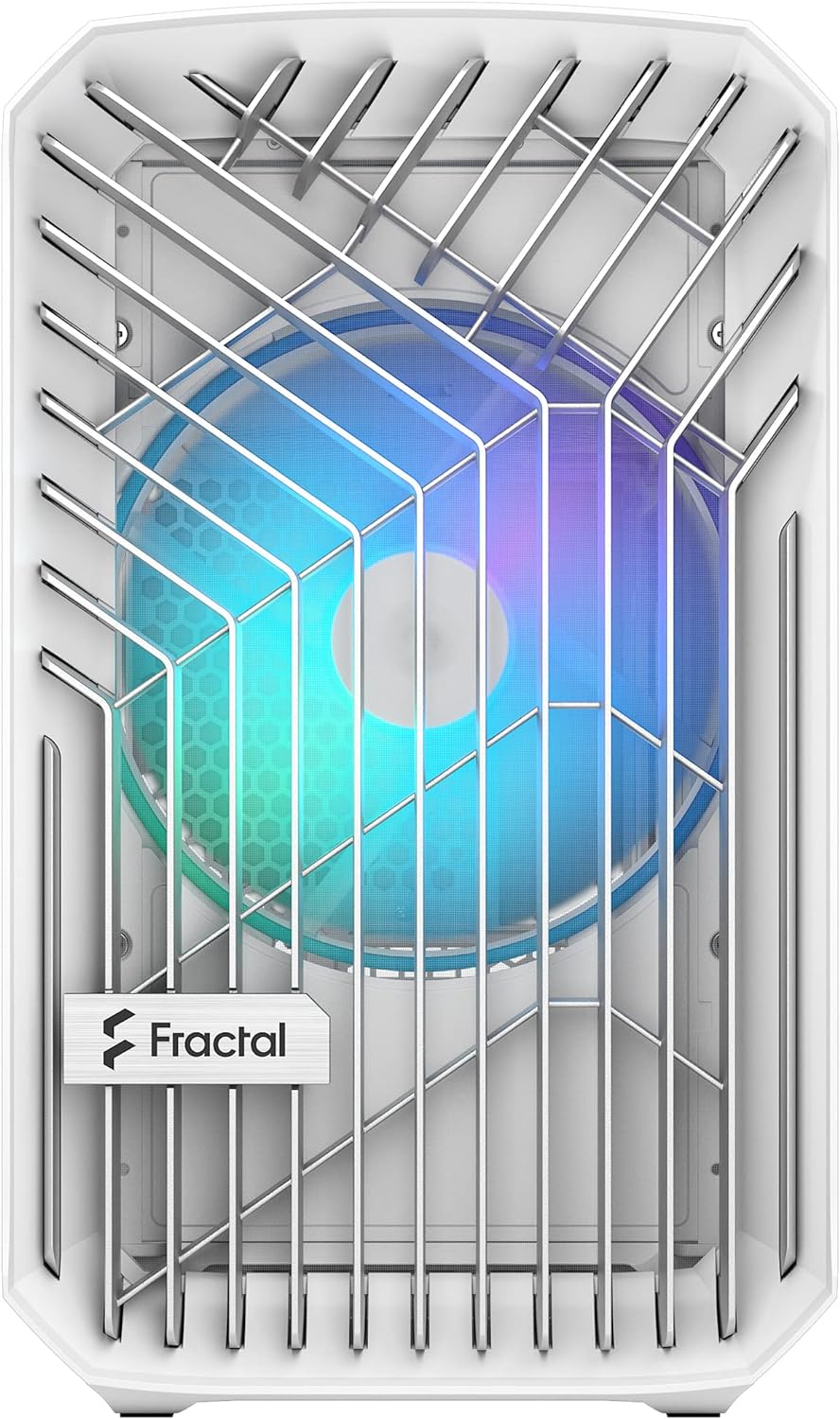

Top-tier airflowOpen grille and an unblocked internal layout supporting a massive 180 mm front fan. |
Streamlined inside and outDespite its modest size, the open interior of the torrent nano provides plenty of breathing room for components and maximizes performance potential. |

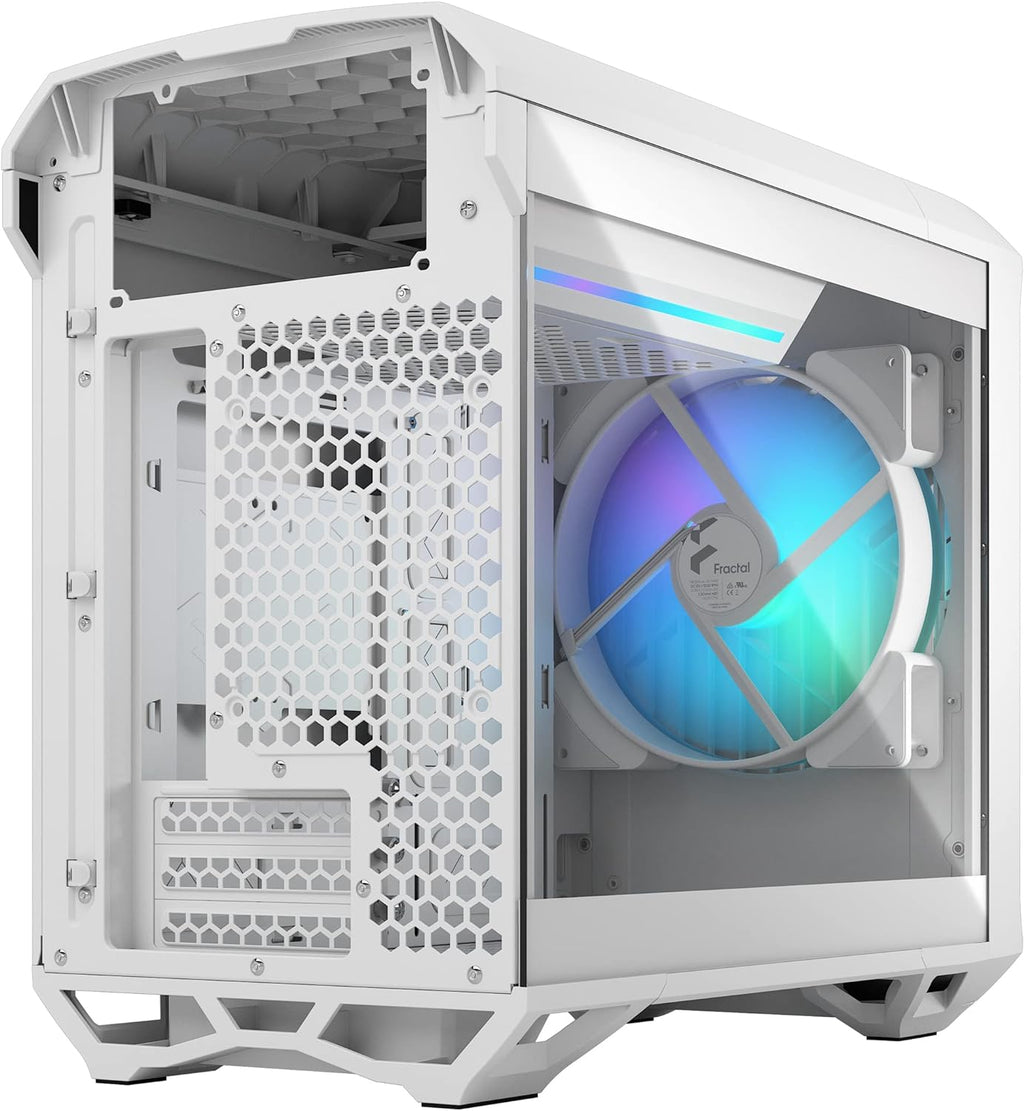

Our biggest fanOur Fractal Design 180 x 38 mm dynamic x2 gp-18 pwm fan (prisma for rgb) leverages power, size and thickness for massive air-moving capacity. |
|
|
|
|
|---|---|---|
Transparently easySeamless tempered glass panels with bolt-free top-latching mechanisms for easy handling. |
Power upTop mounted aerodynamic PSU shroud with integrated ARGB light |

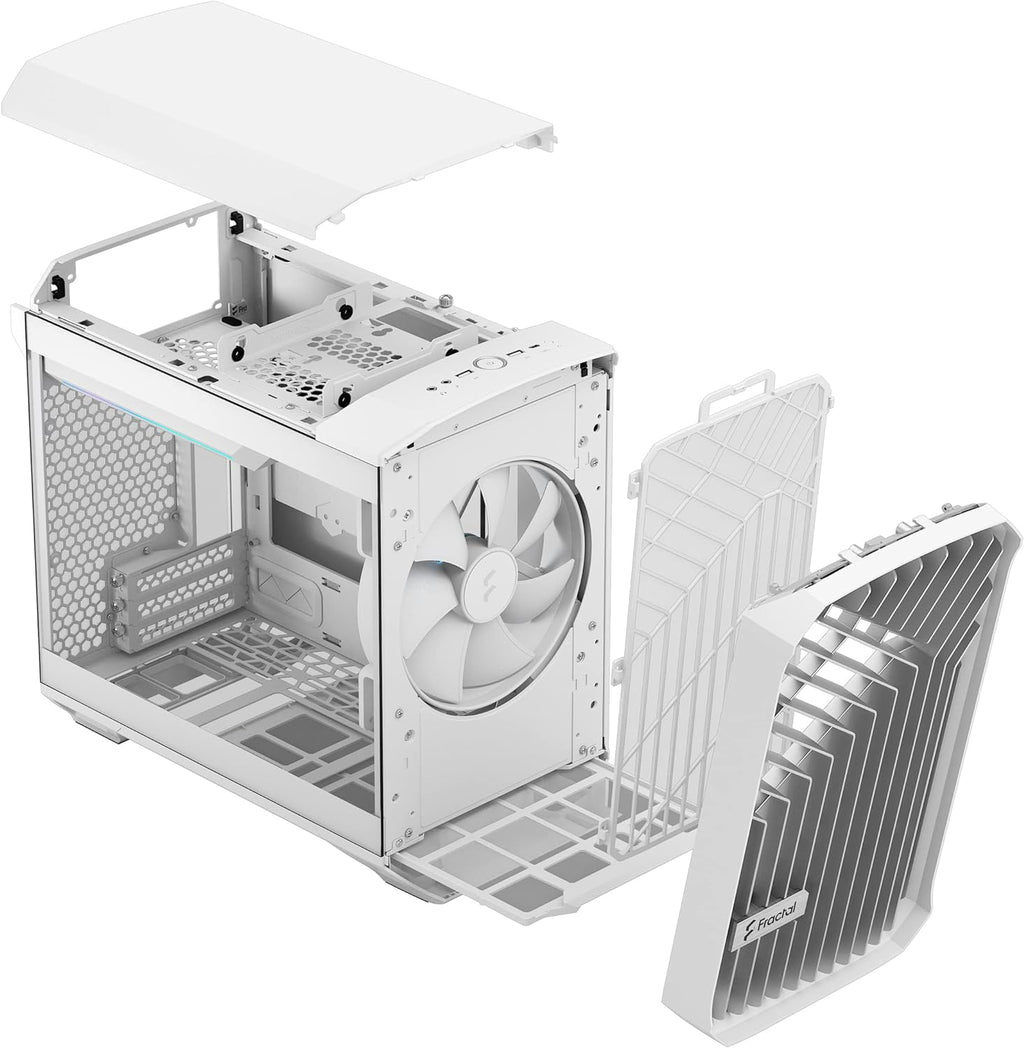

Quick start, clean finishInstallation and cable management made easy by removable top bezel, cable guides and velcro ties. |
| Core Chassis Specifications | |
|---|---|
| Case Edition | Torrent Nano RGB White |
| Case Form Factor | Mini-ITX |
| Motherboard Form Factor |
|
| Reverse Connection Compatible | No |
| I/O, Bays & Expansion | |
|---|---|
| Front/Side/Top Panel I/O |
|
| Drive Bays |
|
| Standard Expansion Slots | 3 |
| Vertical Expansion Slots | |
| Fans & Filters | |
|---|---|
| Fan Bays | 5x120mm/4x140mm/1x180mm |
| Fans Included | 1x180mm |
| Fan Controller/Hub | |
| Dust Filters |
|
| Liquid Cooling Support | |
|---|---|
| Front Radiator Compatibility | 1 x 140/240mm |
| Top Radiator Compatibility | |
| Bottom Radiator Compatibility | 1 x 240/280mm |
| Rear Radiator Compatibility | 1x120mm |
| Side Radiator Compatibility | |
| Clearances | |
|---|---|
| Max CPU Cooler Height | 165mm |
| Max GPU Card Length | 335 mm |
| Cable Routing Space | 29 mm |
| Side Panels | |
|---|---|
| Window/s | Yes |
| Window Configuration | 1 x Main Side |
| Window Construction | Tempered Glass (Tinted) |
| LED Lighting Functionality | |
|---|---|
| LED Lighting | Yes |
| LED Lighting Emitters | Included Addressable LED Fan/s |
| LED Lighting Color | RGB (16.7 Million Colors) |
| LED Lighting Support & Control | |
| Power Supply Compatibility | |
|---|---|
| PSU Included | No |
| PSU Wattage (If Included) | |
| PSU 80+ Rating (If Included) | |
| PSU Support | |
| PSU Mounting Location | Top Mount, Rear |
| Max PSU Length | 200 mm |
| Chassis Physical Specifications | |
|---|---|
| Color | White |
| Chassis Construction Materials | Steel |
| Dimensions | 222 x 374 x 417 (WxHxD mm) |
| Weight | 6.0 kg (Approx) |
