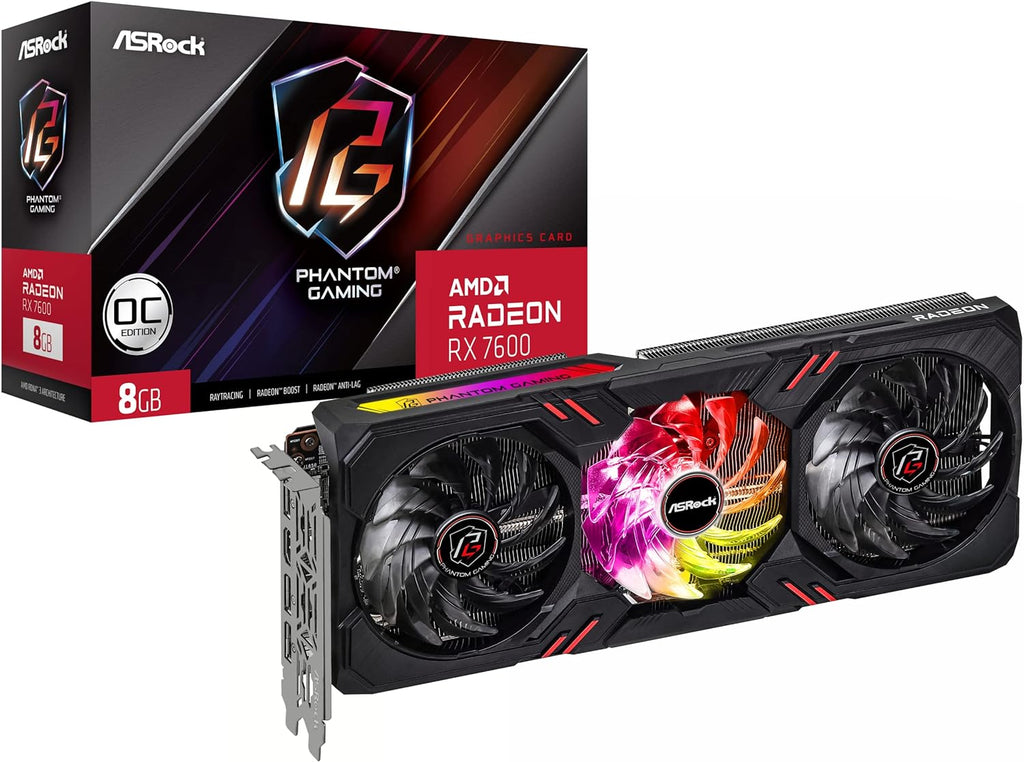

ASRock Radeon™ RX 7600 Phantom Gaming OC 8GB GDDR6

AMD Radeon™ RX 7600 Phantom Gaming 8GB OC

• Graphics Engine
  -AMD Radeon™ RX 7600
• Bus Standard
  ^-PCI® Express 4.0x8
• DirectX
  - 12 Ultimate
• OpenGL
  - 4.6
• Memory
  - 8GB GDDR6
• Engine Clock
  - Boost Clock * : Up to 2755 MHz
  - Game Clock * * : 2355 MHz



  * Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

  * * Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
• Stream Processors
  - 2048
• Memory Clock
  - 18Gbps
• Memory Interface
  - 128-bit
• Resolution
  - Digital Max Resolution: 7680x4320

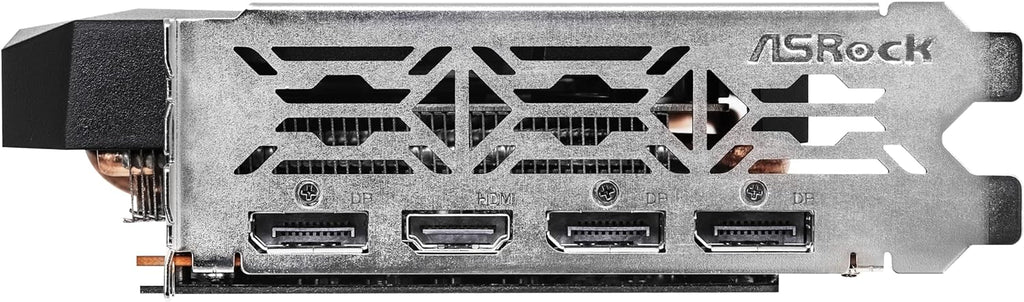

• Interface
  - 3x DisplayPort™ 2.1 *
  - 1 x HDMI™ 2.1



  * DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
• HDCP
  - Yes
• Multi-view
  - 4
• Recommended PSU
  - 600W
• Power Connector
  - 1 x 8-pin
• Accessories
  - 1 x Quick Installation Guide
• Dimensions
  - 305 x 131 x 48 mm, 2.4-slot
• Net Weight
  - 894g

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

Triple Fan Design

Triple fan design helps to optimize system cooling to reduce the operating temperature.

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

ASRock Tweak 2.0

Pro and Easy-to-Use Tuning Utility.

Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

^PCI® Express 4.0 Support

This graphics card features ^PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI ^® Express 3.0. Get ready for the next generation of PC gaming.

AMD Eyefinity Technology

AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

BREAKTHROUGH PERFORMANCE

AMD Radeon™ RX 7600 graphics card sets a new level of performance for gamers and streamers. Featuring unified AMD RDNA™ 3 compute units, and blazing fast clock speeds, to enable advanced high refresh rate gaming performance at 1080p.

BREATHTAKING VISUALS

Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX™ features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display™ Engine and DisplayPort™ 2.1 ⁴ to experience up to 68 billion colors for video playback at up to 8K. Deliver enhanced visual quality to your audience when streaming and recording using the improved encoders, together with integrated AI and content adaptive machine learning technology to enable better looking and crisper visuals when streaming .

BETTER TOGETHER

Combine an AMD Radeon™ RX 7600 graphics card and AMD Ryzen™ processors to activate AMD smart technologies ^3. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon™ RX 7000 Series graphics card with the AMD Software: Adrenalin Edition™ application, featuring bulletproof drivers, for the best PC gaming experiences.

UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY

AMD FidelityFX™ Super Resolution technology ¹ takes upscaling technology to the next level. Providing incredible image quality while boosting framerates in supported games.
AMD Radeon™ Super Resolution (RSR) ² leverages FSR technology on the driver level, giving you upscaled performance benefits across thousands of games.
