Description
24B2XDA
23.8-inch Narrow Bezel Wide Viewing Angle Display
Free shuttle between work and entertainment
Experience the ultimate narrow frame
IPS wide viewing angle panel
The viewing angle reaches 178°, allowing users to view a fresh, bright and complete picture at any angle, and at the same time show color consistency, presenting a lifelike and vivid picture with actual primary colors.

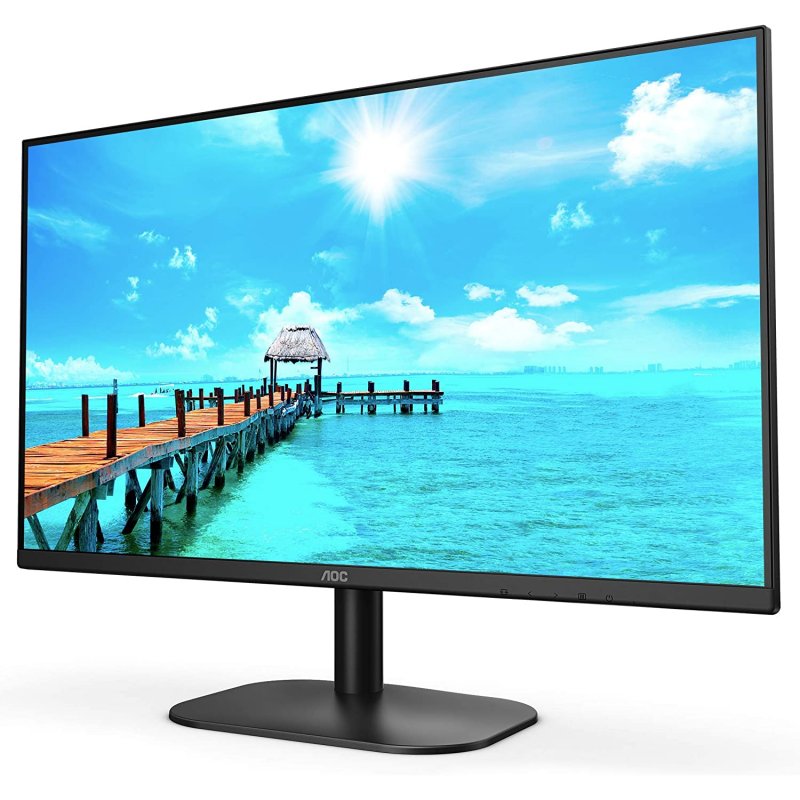

Super narrow on three sides frame design
The ultra-narrow bezel design provides a more comfortable viewing experience while saving space, and is suitable for multi-monitor splicing, greatly improving the gaming experience.
Stylish and slim body
The sleek, slim design brings visual impact and style to any place it is used. They also save desk space and are easier to move.

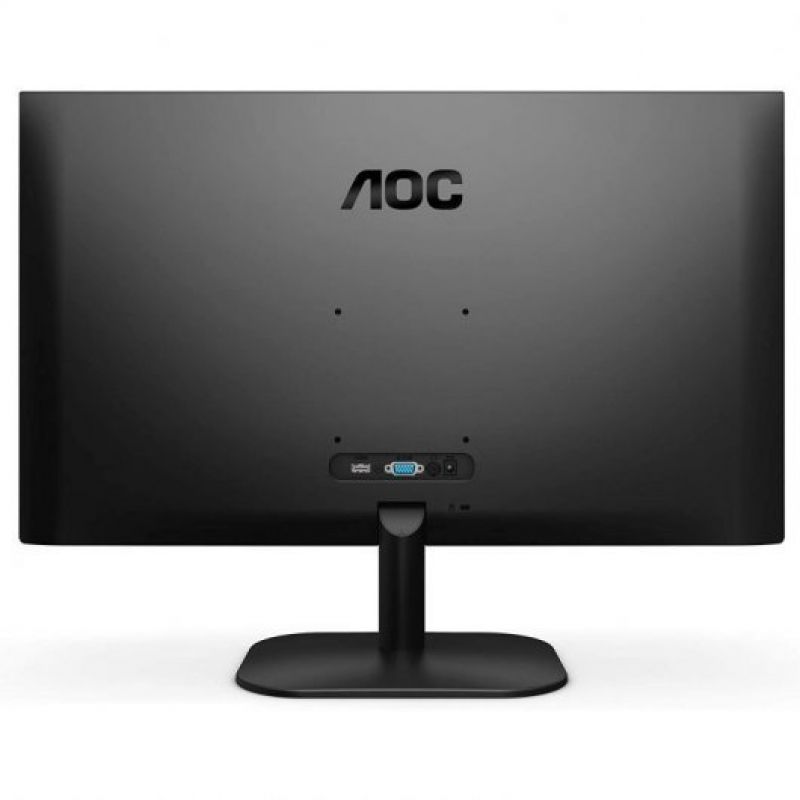

VESA wall mount function
The VESA wall mount function can be used for wall mount setup or multi-monitor installation, providing the flexibility you need for life and work, while saving more space and experiencing a more spacious and comfortable use experience.
Net blue light function effectively reduces blue light
Prolonged exposure to blue light may cause eye fatigue, sleep disorders or headaches. The Blue Light Cleaner function effectively reduces harmful blue light waves by controlling the color temperature.
No flicker screen technology for eye protection
Most LED screens use PWM (Pulse Width Modulation) technology to adjust the brightness to control the brightness, but this pulse technology is prone to flickering, especially in dim and low-light environments, which is more likely to cause discomfort such as headaches and eye fatigue. The flicker-free screen technology uses a smooth DC backlight system to reduce the flicker frequency by strengthening the voltage, providing consumers with a healthier and eye-protecting usage situation.
Built-in split desktop software Screen+
Screen+ software provides desktop screen cut, which allows your desktop to be divided into different windows, and each window can display different execution screens. You only need to drag the displayed application to the blank split window, and you can directly execute it.
On-screen display settings are easily adjusted
Use the "AOC i-Menu OSD software" to use the mouse to adjust the screen display parameters, without pressing the buttons on the monitor, and get rid of the complicated adjustment process.
Detailed specifications
| Product number | 24B2XDA |
| International barcode (EAN code) | 471 738594 629 3 |
| panel size | 23.8" (IPS) |
| Pixel pitch (mm) | 0.2745 (H) × 0.2745 (V) |
| Visible screen size(mm) | 527.04 (H) × 296.46 (V) |
| brightness | 250 cd/m² |
| Dynamic Contrast | 1000 : 1 (Typical) 20 Million : 1 (DCR) |
| Reaction time | 4ms (GtG) |
| Viewing angle (horizontal / vertical) | 178° (H) / 178° (V) (CR > 10) |
| color gamut | NTSC 88% (CIE1976) / sRGB 105% (CIE1931) |
| color accuracy | - |
| best resolution | 1920 × 1080 @ 75Hz - HDMI 1920 × 1080 @ 60Hz - VGA, DVI |
| display color number | 16.7 Million |
| signal input | VGA × 1, DVI × 1, HDMI 1.4 × 1 |
| power supply | 19V DC, 1.31A |
| power consumption | 19W |
| trumpet | 2W × 2 |
| Audio input/output | Line In × 1/Earphone × 1 |
| wall hanging | 100mm × 100mm |
| Adjustable tripod | Tilt: -5° ~ 20° |
| The product does not include base size (mm) | 320.9 (H) × 539.5 (W) × 37.5 (D) |
| Product including base size (mm) | 418.4 (H) × 539.5 (W) × 170.9 (D) |
| Product without base weight (kg) | 2.5 |
| Product including base weight (kg) | 2.8 |
| color | Black |
| Safety certification | BSMI/CE/FCC |
| * This product catalog is for reference only, and the product is based on the actual product specification. | |
