Name: AeroCool Trinity Mini FRGB White Tempered Glass Micro-ATX Case
Brand: AEROCOOL
SKU: CAS000566
Price: 299.0 HKD
Availability: InStock

AeroCool Trinity Mini FRGB White Tempered Glass Micro-ATX Case

Roll over image to zoom in Click on image to zoom

This case is designed with ventilation in mind, providing excellent airflow while allowing view of the front-facing LED fan. This high-performance mini tower case features fully tempered glass side panels that showcase the inside of your unit. Supports front and rear liquid cooling of the case for maximum efficiency cooling.

Vented front panel provides superior airflow and ventilation while allowing view of the front-mounted LED fan
Equipped with fully tempered side panels to show off the internal structure of the equipment
Fan mounting on the PSU shroud supports up to two 12cm fans for improved VGA cooling
Supports liquid cooling on the front and rear of the case
Supports air cooling at the front, top and rear of the case
Dual chamber design improves ventilation

Improve air circulation

The stylish front panel design features built-in vents for increased airflow and ventilation while allowing view of the front-mounted LED fan.

Fully tempered glass side panels

Features fully tempered glass side panels to reveal the inside of the device and showcase your components.

Graphics card cooling

Fan mounting on the PSU shroud supports graphics card cooling:
Two 120mm fans provide superior VGA cooling.

air cooling

Supports air cooling at the front, top, and rear of the case to enhance heat dissipation performance.

Front: 120mm x 2 or 140mm x 2 (maximum)
Upper: 120mm x 2 (maximum)
Rear: 120mm x 1 (maximum)
PSU shield: 120mm x 2 (maximum)

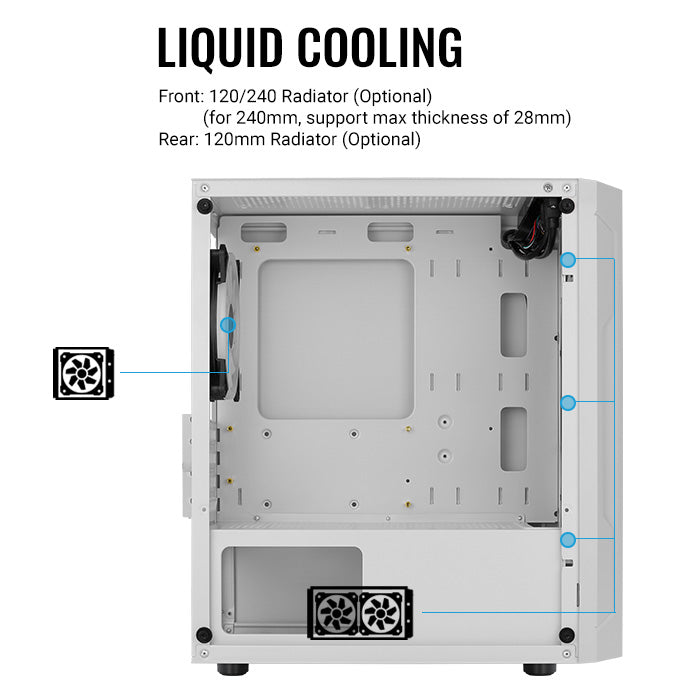

liquid cooling

Supports liquid cooling at the front and rear of the case to achieve maximum cooling efficiency.

Front: 120/240mm radiator (optional)
(240mm, supports maximum length 240mm, maximum thickness 28mm)
Rear: 120mm radiator (optional)

Dual chamber design

Featuring a dual-chamber design, heat is directed away from the main chamber for more effective all-round cooling.

Built for high performance

Supports Micro-ATX and mini-ITX motherboards
Supports CPU radiators up to 158mm
Supports high-end graphics cards up to 297mm (excluding front radiator)

Conveniently access your media

Get quick and easy access to USB 3.0 x 2, USB 2.0 x 1, HD audio and microphone ports, as well as power and reset buttons.

storage capacity

Supports up to two 3.5-inch HDDs (2 x 3.5 inches/2.5 inches) and three 2.5-inch SSDs (1 x 2.5 inches and 2 x 2.5 inches/3.5 inches).

color	White
Body material	SPCC
Front panel material	ABS
Steel thickness	0.5mm
motherboard	MicroATX/mini-ITX
Housing dimensions (internal)	200×375×300 mm (width×height×depth)
Housing size (overall)	206.5×385×353.4 mm (width×height×depth)
3.5” drive bay	Maximum 2 (2 x 3.5 inches/2.5 inches)
2.5” drive bay	Up to 3 (1 x 2.5” and 2 x 2.5”/3.5”)
Expansion slot	4
GPU clearance	Supports GPUs up to 297mm (excluding front radiator)
CPU cooler clearance	Supports CPU radiators up to 158mm
air cooling	Front: 120mm x 2 or 140mm x 2 (maximum) Top: 120mm x 2 (maximum) Back: 120mm x 1 (maximum) PSU shroud: 120mm x 2 (maximum)
liquid cooling	Front: 120/240mm radiator (optional) (Applicable to 240mm, supports maximum thickness 28mm) Rear: 120mm radiator (optional)
input/output port	USB3.0×2 \| USB2.0×1 \| HD audio and microphone.
Internal cable management depth	20.5mm
