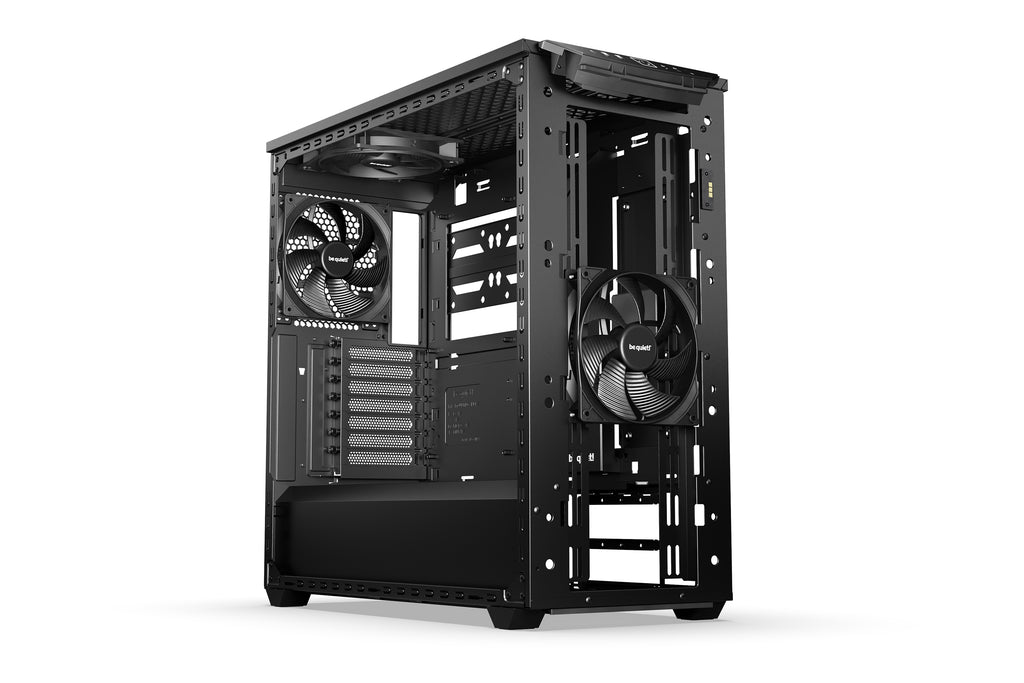

Pre-installed fans
| Fan at top | 1x Pure Wings 3 140mm PWM |
| Fan at front | 1x Pure Wings 3 140mm PWM |
| Fan at side | - |
| Fan at rear | 1x Pure Wings 3 140mm PWM |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25 |
| Fan speed at 100% PWM / 12V (rpm) | 1200 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level at 100% PWM / 12V (dB(A)) | 21.9 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.6 |
| Input current (A) | 0.3 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 80,000 |
| Fan controller | - |

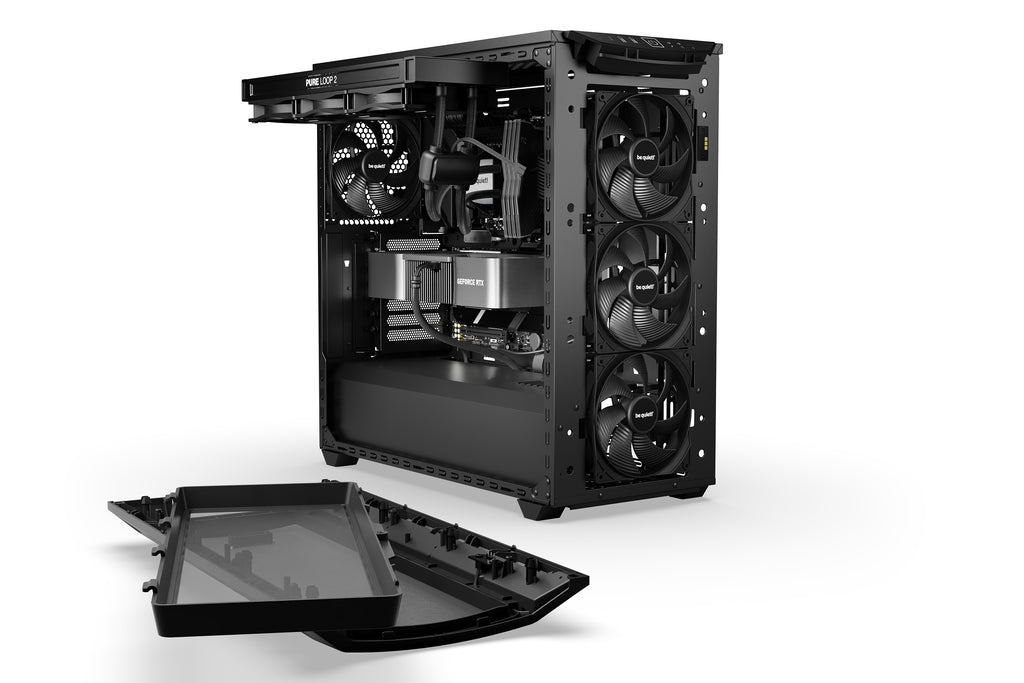

Maximum fan installation
| Maximum fans | 8 |
| Top (mm) | 3x 140 / 3x 120 |
| Front (mm) | 3x 140 / 3x 120 |
| Side (mm) | - |
| Rear (mm) | 1x 140 / 1x 120 |
| Bottom (mm) | 1x 140 / 1x 120 |
| PSU shroud | - |
Optional radiator installation
| Top (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
| Front (mm) | 120 / 140 / 240 / 280 / 360 / 420 |
| Side (mm) | - |
| Rear (mm) | 120 |
| Bottom (mm) | - |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | 305 |
| Maximum dimensions incl. bottom fan (mm) | 260 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 430 |
| HDD cage (in height of graphics card) removed (mm) | 430 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 7 |
Drive bay capacity
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 4 |
| 2.5 slots (scope of delivery) | 4 |
| 2.5 slots (max.) | 8 |
Cooling
| Max.construction height of CPU cooler unit (mm) | 180 |
| Airflow channel | Front / Top / Rear / Bottom |
Lighting
| LED illumination | - |
| LEDs (pcs.) | - |
| LED type | - |
| LEDs synchronizable with controller/motherboard | - |

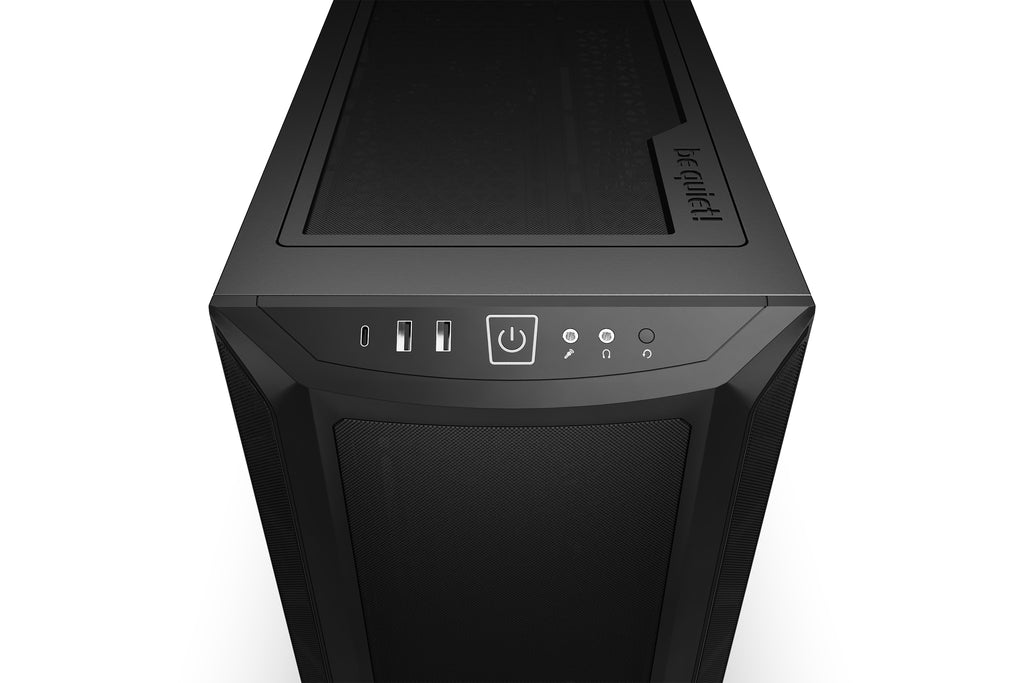

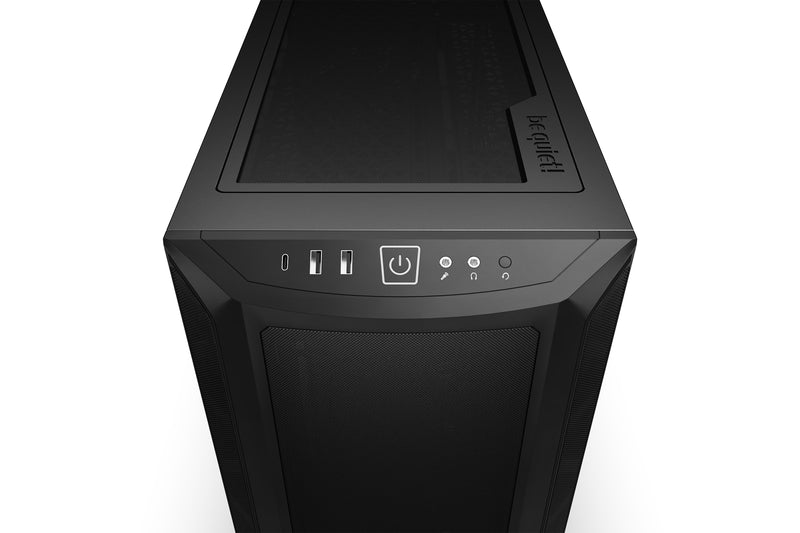

I/O Panel
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option | - |
Insulation and damping
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | ✓ |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | - |
