描述
| Model | NE1300G M ATX3.0 |
| Type | ATX 12V 3.0 |
| Dimension | 140(L)*150(W)*86(H) |
| Modular | Full-Modular |
| Warranty | 10 years |
| Input Voltage | 100V-240V |
| Input Current | 15A-7.5A |
| Input Frequency Range | 60Hz-50Hz |
| PFC | Active PFC |
| Power Good Signal | 100-150ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 1300W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |

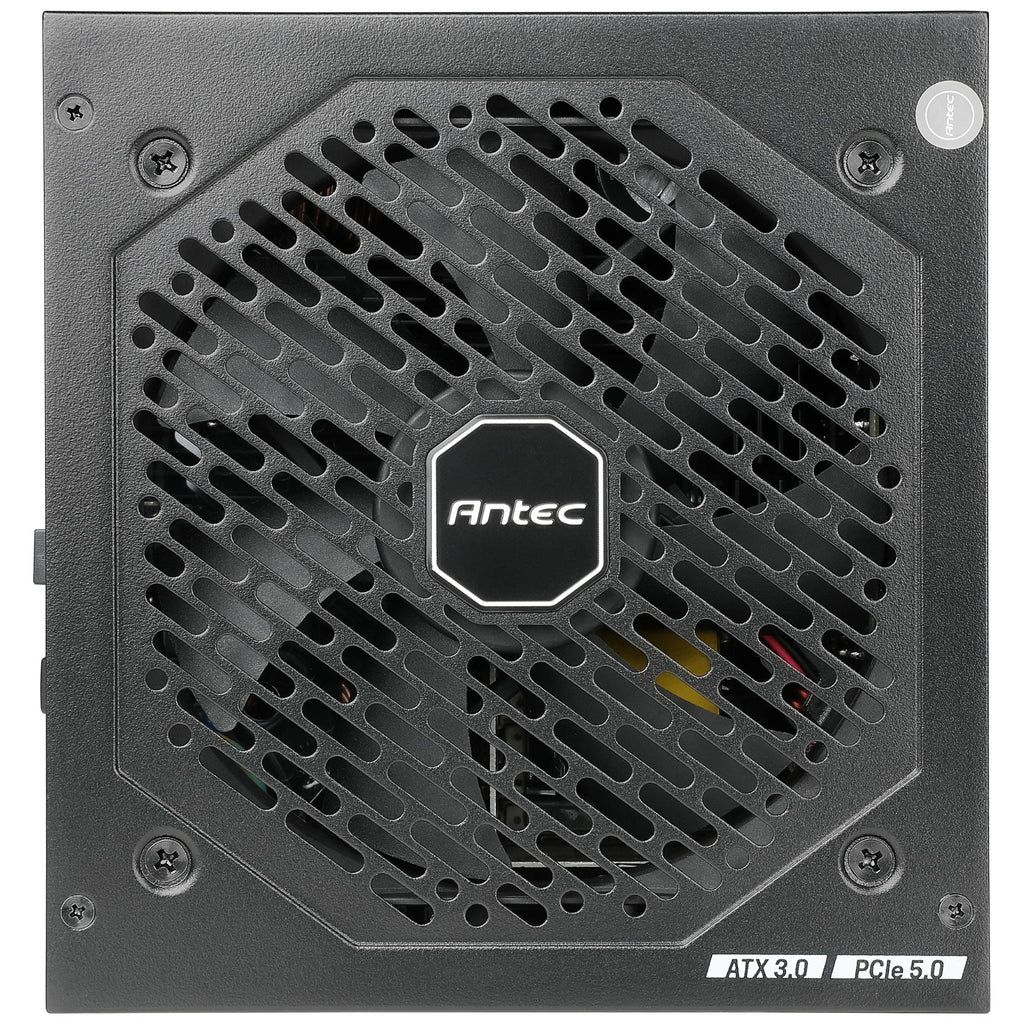

| Fan | 120mm FDB Silent Fan |
| Certifications | 80 Plus Gold |

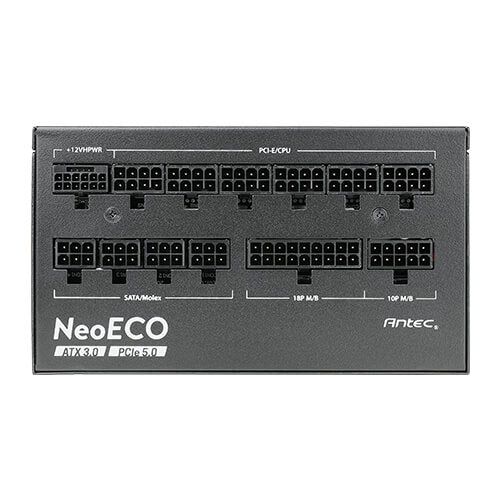

| Connector | 1 x 24(20+4)pin MB |
| 1 x 16(12+4)pin PCIE 5.0 12VHPWR | |
| 2 x 8(4+4)pin CPU | |
| 4 x 8(6+2) Pin PCI-E | |
| 12 x SATA | |
| 4 x Molex | |
| Net Weight | 1.66 Kgs |
| Gross Weight | 4.68 Kgs |
